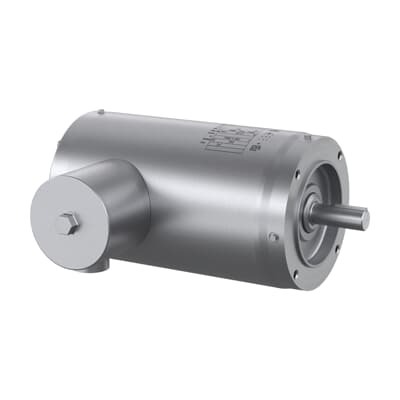

ABB 7BVFSWDM3546T-E-G Washdown Motor - Premium Efficiency
Part Number: 7BVFSWDM3546T-E-G
Quick Summary
Washdown motor reliability is critical in food processing and packaging, and ABB's 7BVFSWDM3546T-E-G delivers it. In harsh washdown environments, motors must withstand moisture, detergents, and frequent cleaning without sacrificing performance. This 1 HP, 230/460 V, 60 Hz, 3-phase machine is engineered with a stainless-steel frame and a food-safe construction to meet stringent hygiene standards. The design aligns with NEMA Premium efficiency, CSA EEV, and UR approvals, ensuring energy savings, regulatory compliance, and traceability across global facilities. By combining a robust enclosure, direct-on-line starting, and a compact footprint, it reduces downtime and total cost of ownership while staying compatible with standard 143TC frame systems and C-face mounting.
Product Information
Extended Description
7BVFSWDM3546T-E-G ABB: Washdown Motor 1 Hp 230 V (VFSWDM3546T-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143TC,3522M,TE
Ambient Temperature
40 °C
Bearing
6205
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFSWDM3546T-E-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDM3546T-E-G
Gross Volume
3496.049 inÂł
Gross Weight
37 lb
Insulation Class
H
Invoice Description
1HP,1770RPM,3PH,60HZ,143TC,3522M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (VFSWDM3546T-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
74 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
37 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3 A | 1.5 A
Rated Efficiency
85.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B35E6051G184G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Stainless steel frame and TENV enclosure for washdown environments → Business Impact: Superior corrosion resistance and long-term durability in high-pressure cleaning cycles → Application: Food and beverage lines where frequent cleaning and hygiene compliance are essential. Feature: 1 HP, 1760 r/min, 3-phase, 60 Hz operation → Business Impact: Consistent torque and reliable speed control, improving conveyor and pump performance while reducing variability in production runs → Application: Packaging conveyors, mixing, and handling in continuous-process lines. Feature: Frame 143TC with C-Face mounting and footless base → Business Impact: Flexible integration in tight spaces and straightforward retrofits with minimal footprint changes → Application: Wall-, benchtop-, or pedestal-mounted drives in compact washdown areas. Feature: NEMA Premium efficiency (85.50%) and PF ~0.74 → Business Impact: Lower energy consumption and operating costs over the motor’s life, with better electrical performance in demanding cycles → Application: High-duty, continuous-operation lines seeking energy savings and reduced utility bills. Feature: Direct-on-Line starting and 230/460 V dual-voltage capability → Business Impact: Simplified control schemes, reduced starter packs, and faster line start-ups → Application: Fast-changeover lines and maintenance-friendly plant wide drives. Feature: Certifications (NEMA Premium, CSA EEV, UR) and food-safe design → Business Impact: Regulatory compliance, safer operation, and improved supplier qualification in audited facilities → Application: Global food and pharmaceutical manufacturing environments seeking proven, certified equipment.
Get a Quick Quote for a ABB 7BVFSWDM3546T-E-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFSWDM3546T-E-G?
Enquire Now
FAQs
The 7BVFSWDM3546T-E-G supports 230 V and 460 V dual-voltage operation, is configured for 3-phase, 60 Hz service, and uses C-face mounting with a footless base. This makes it straightforward to drop into standard 143TC frame installations and matches common inline conveyors and washdown production lines. For retrofits, ensure compatibility with your drive end flange and shaft dimensions (0.88 in diameter) to avoid misalignment.
Key performance specs include 1 HP rated power, 1760 r/min nominal speed, and a rated efficiency of 85.50% with a power factor of approximately 0.74. It operates at 60 Hz and 3-phase, with a continuous duty rating and direct-on-line starting, which supports high-duty cycles in continuous manufacturing environments. These figures support predictable throughput and energy-conscious operation.
Yes. The motor is designated as Food Safe Washdown, featuring a stainless-steel frame and a protective enclosure suitable for washdown and high-cleaning frequencies. Its NEMA Premium efficiency designation enhances energy savings on continuous lines, while the 143TC frame and C-Face mounting simplify installation in food and beverage processes that require hygienic, easily cleanable equipment.
The unit carries NEMA Premium efficiency, CSA EEV, and UR certifications, along with standard NEMA compliance. These certifications indicate energy efficiency, Canadian electrical safety compliance, and UL recognition, respectively, which support regulatory approvals, supplier qualification, and safer operation in audited facilities.
Maintenance benefits come from a stainless-steel frame and robust washdown-ready design that resists corrosion and reduces cleaning-related wear. ROI is enhanced by NEMA Premium efficiency, which lowers operating energy costs, direct-on-line starting minimizes hardware and downtime, and the motor’s durability supports longer service intervals in continuous production environments.
