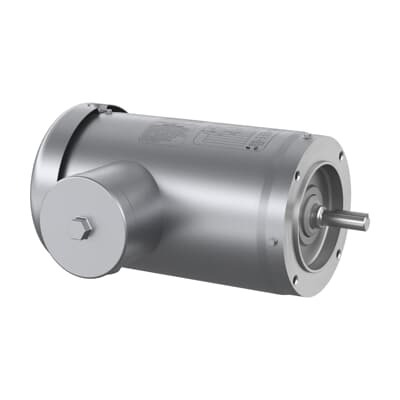

ABB 7BVFSWDM3554-E Washdown Motor - Food Safe TEFC
Part Number: 7BVFSWDM3554-E
Quick Summary
ABB 7BVFSWDM3554-E is a washdown motor delivering 1.50 Hp at 230/460 V for food-safe processing. This rugged 3-phase, 60 Hz motor is designed for hygienic environments where cleaning and reliability are critical. The stainless-steel frame and TEFC enclosure resist corrosion and simplify routine washdowns, reducing maintenance downtime. It carries key certifications like CSA EEV, UR, and NEMA Premium Efficiency to meet safety and energy standards essential in food and beverage facilities. With a 56C frame, C-face mounting, and a footless base, installation is flexible across conveyors, mixers, and packaging lines. Stock availability across multiple warehouses and a 0-day lead time supports lean manufacturing and fast project execution.
Product Information
Extended Description
7BVFSWDM3554-E ABB: Washdown Motor 1.50 Hp 230 V (VFSWDM3554-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,56C,3526M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VFSWDM3554-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4649
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDM3554-E
Gross Volume
3496.049 in³
Gross Weight
45 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,56C,3526M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VFSWDM3554-E)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
75 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
45 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.4 A | 2.2 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B35E4649Z819G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → The motor uses a Food Safe Washdown design with a stainless steel frame and TEFC enclosure to resist caustic washdowns. Business Impact → Extends service life in harsh cleaning cycles and lowers replacement costs. Application → Ideal for dairy, meat, and ready-to-eat processing lines where hygiene is non-negotiable. Feature → Dual-voltage capability (230 V / 460 V) and 3-phase operation at 60 Hz delivering 1.50 HP. Business Impact → Simplifies electrical planning and reduces spare-part variety, accelerating commissioning. Application → Suitable for variable plant power configurations and upgrade paths in conveyors and mixers. Feature → Premium Efficiency (NEMA Premium) improves energy use by delivering high efficiency under continuous duty. Business Impact → Reduces energy costs and cooling load, supporting sustainability goals. Application → Best fit for high-cycle processes like fill lines and packaging systems. Feature → C-Face drive end flange and 56C frame with horizontal mounting and footless base. Business Impact → Streamlines mounting options and minimizes retrofit risks during line modernization. Application → Flexible installation on existing frames and new equipment alike. Feature → Insulation Class H, ambient 40 °C, and TEFC enclosure for reliability and heat resistance. Business Impact → Maintains performance in hot washdown rooms and prevents premature insulation degradation. Application → Automotive, pharmaceutical, and food processing environments where temperature variance matters. Feature → Certifications CSA EEV, UR, and NEMA Premium, with Direct on Line starting and continuous duty. Business Impact → Ensures regulatory compliance and straightforward startup with reliable startup behavior. Application → Plants requiring formal safety approvals and robust, continuous operation.
Get a Quick Quote for a ABB 7BVFSWDM3554-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFSWDM3554-E?
Enquire Now
FAQs
Yes. The drive end flange is C-Face and it uses a 56C frame with a footless base, which provides flexible mounting options. This simplifies retrofits on conveyors, mixers, and packaging lines and reduces the need for custom adapters during installation.
The motor is a 3-phase unit rated for dual voltage: 230 V or 460 V, operating at 60 Hz. It draws about 4.4 A at the higher/current condition and 2.2 A at the lower, corresponding to the 1.50 HP output and continuous-duty operation.
Yes. It is explicitly marketed as a Food Safe Washdown motor with a stainless-steel frame and TEFC enclosure for corrosion resistance, easy cleaning, and reliability in sanitary plants such as dairy, meat, and beverage processing facilities.
The model carries CSA EEV, UR, and NEMA Premium Efficiency certifications, along with NEMA standard compliance. These align to safety, energy efficiency, and regulatory requirements common in food and pharmaceutical manufacturing.
Lead time is listed as 0 days, and stock is available at multiple warehouses, including US-based locations and international hubs, enabling rapid fulfillment for ongoing projects and maintenance shutdowns.
