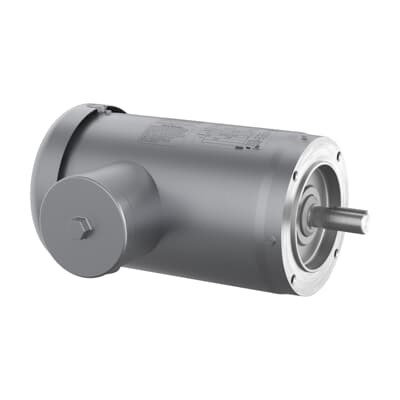

ABB 7BVFSWDM3558T-E Washdown Motor - 2HP TEFC 60 Hz
Part Number: 7BVFSWDM3558T-E
Quick Summary
Washdown motor ABB 7BVFSWDM3558T-E delivers cleanable, reliable 2 HP drive for food processing and pharma equipment. Industrial washdown sites demand corrosion resistance, easy cleaning, and high uptime; this motor meets those needs with a TEFC enclosure and stainless-steel frame. Key certifications include CSA EEV, UR, and NEMA Premium Efficiency, signaling regulatory compliance and long-term operating cost reductions. Rated for 60 Hz operation at 1765 rpm with a 3-phase supply 230/460 V, it also features a food-safe washdown-ready design and C-face mounting for versatile installations. Built to endure 40 °C ambient conditions, it provides robust performance in challenging production lines while supporting energy-efficient operation and predictable maintenance.
Product Information
Extended Description
7BVFSWDM3558T-E ABB: Washdown Motor 2 Hp 230 V (VFSWDM3558T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1765RPM,3PH,60HZ,143TC,3528M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VFSWDM3558T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4709
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDM3558T-E
Gross Volume
5274.135 in³
Gross Weight
63 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
2HP,1765RPM,3PH,60HZ,143TC,3528M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VFSWDM3558T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
81 %
Product Name
Food Safe Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
63 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.3 A | 2.65 A
Rated Efficiency
86.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Food-safe washdown design with a stainless-steel frame and TEFC enclosure. Business Impact: Resists corrosion and enables easy cleaning, reducing contamination risk and downtime. Application: Ideal for dairy, meat processing, and pharmaceutical CIP lines where sanitary integrity is essential. Feature: Premium efficiency with 2 HP output, 1765 rpm at 60 Hz, and 230/460 V 3-phase supply. Business Impact: Lower energy consumption and cooler operation extend motor life and reduce operating costs. Application: Useful for continuous-process conveyors and mixing in sanitary plants seeking energy savings without performance loss. Feature: 3-phase power compatibility (230/460 V) and 1765 rpm nominal speed. Business Impact: Simplifies retrofits and new installations by aligning with standard industrial power distribution. Application: Retrofit projects and new builds across food/beverage lines and CIP systems. Feature: Sealed 6205 bearings and 40 °C ambient capability. Business Impact: Enhances reliability in washdown environments, reducing maintenance and unplanned downtime. Application: Wet, humid production areas requiring robust bearing protection and long service intervals. Feature: C-Face mounting, 143TC frame, and footless base for flexible installation. Business Impact: Easier alignment and installation in tight spaces, lowering integration time and labor costs. Application: Horizontal mounting on compact conveyors or mixer pallets in sanitary facilities.
