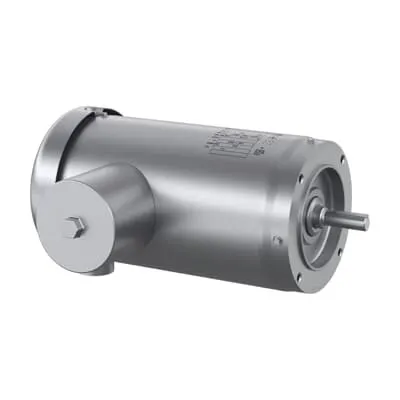

ABB 7BVFSWDM3559-E-G Washdown Motor - Food Safe Washdown
Part Number: 7BVFSWDM3559-E-G
Quick Summary
Washdown motor ABB 7BVFSWDM3559-E-G delivers 3 HP at 230 V for hygienic, food-grade processing lines. In food, beverage, and pharmaceutical facilities, frequent washdowns demand durable seals and corrosion resistance to prevent costly downtime. This TEFC motor is designed to meet Premium Efficiency (NEMA Premium), CSA EEV, and UR certifications, helping you align with energy and safety standards. Its stainless-steel frame and food-safe construction stand up to aggressive cleaners while maintaining long service life. Horizontal mounting with a C-face drive end simplifies installation, while the 230/460 V dual-voltage, 60 Hz operation supports flexible automation strategies and rapid project ramp-up.
Product Information
Extended Description
7BVFSWDM3559-E-G ABB: Washdown Motor 3 Hp 230 V (VFSWDM3559-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3470RPM,3PH,60HZ,56C,3546M,TEFC
Ambient Temperature
40 °C
Bearing
6205
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFSWDM3559-E-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDM3559-E-G
Gross Volume
5274.135 inÂł
Gross Weight
61 lb
Insulation Class
H
Invoice Description
3HP,3470RPM,3PH,60HZ,56C,3546M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 3 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (VFSWDM3559-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
90 %
Product Name
Food Safe Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
61 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3470 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Shaft Grounding
Shaft Grounding
Short Description
3 HP, 3600 RPM, Frame Size 56C, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → The TEFC enclosure and stainless-steel frame provide superior moisture resistance and corrosion protection, extending motor life in washdown environments. Business Impact → Reduced maintenance costs and less downtime on high-cleaning lines. Application → Ideal for food processing, dairy, and beverage conveyors where frequent cleaning is required. Feature → Dual-voltage capability (230 V / 460 V) and 60 Hz operation offer flexibility across sites. Business Impact → Simplified procurement and faster project ramp-up with standardized stock across facilities. Application → Compatible with multi-site automation architectures and retrofits. Feature → 56C frame with a Direct on Line (DOL) starting profile and 3470 r/min nominal speed. Business Impact → Predictable starting torque and straightforward replacement in existing systems. Application → Conveyor drives, mixers, and other continuous-load applications. Feature → C-Face drive end flange and horizontal mounting orientation enable easy installation and alignment. Business Impact → Reduced commissioning time and straightforward retrofits into existing skids. Application → Food-safe washdown lines and hygienic process equipment with tight space constraints. Feature → Premium Efficiency, high insulation (Class H), and a 0.63 in shaft diameter support long service life and reliability. Business Impact → Lower energy costs and improved uptime in demanding environments. Application → Continuous-process machinery where energy savings and durability are essential.
