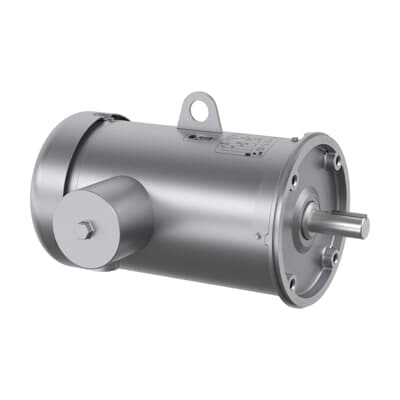

ABB 7BVFSWDM3615T-E-G Washdown Motor - NEMA Premium
Part Number: 7BVFSWDM3615T-E-G
Quick Summary
Washdown motors are essential for hygienic, high-moisture environments, and the ABB 7BVFSWDM3615T-E-G delivers reliable 5 HP performance for conveyors, mixers, and packaging lines. This model supports 230 V and 460 V inputs with 60 Hz three-phase operation, a 184TC frame, and a TEFC enclosure. It meets stringent industry requirements with NEMA Premium efficiency, CSA EEV certification, and UR recognition, ensuring energy savings and regulatory compliance. By combining a robust stainless-steel frame, precise shafting, and a straightforward direct-on-line starting profile, it reduces total cost of ownership while maximizing uptime. Use it in food-safe washdown applications, especially in meat, dairy, and beverage processing equipment where hygiene and durability are non-negotiable.
Product Information
Extended Description
7BVFSWDM3615T-E-G ABB: Washdown Motor 5 Hp 230 V (VFSWDM3615T-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,3646M,TE
Ambient Temperature
40 °C
Bearing
6206
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFSWDM3615T-E-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDM3615T-E-G
Gross Volume
7192.91 in³
Gross Weight
101 lb
Insulation Class
H
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,3646M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (VFSWDM3615T-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
81 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
101 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Food-safe washdown capability and stainless steel frame. Business Impact: Delivers corrosion resistance and hygienic operation in wet, sanitized environments, reducing downtime and cleaning costs. Application: Food processing lines, beverage packaging, and dairy equipment. Feature: TEFC enclosure and 184TC frame with C-Face mounting. Business Impact: Protects internals from moisture and washdown spray while simplifying alignment and installation. Application: New machine builds and retrofit projects with tight space constraints and frequent washdowns. Feature: NEMA Premium efficiency with PF ~0.81 and efficiency around 89.5%. Business Impact: Lower energy consumption over motor life, reduced operating costs, and improved plant sustainability. Application: Long-running conveyors and mixers in high-throughput lines. Feature: 3-phase, 60 Hz, 230/460 V operation with 4-pole design. Business Impact: Flexible electrical compatibility for plant-wide modernization or retrofit, minimizing wiring changes. Application: Production lines upgrading from older motors without extensive electrical redesign. Feature: Mounting versatility (C-Face, horizontal/F1) and footless base, plus shaft diameter 1.13 in. Business Impact: Easier installation, faster commissioning, and reduced hardware costs; improves alignment and service access. Application: Conveyor drives, depositor heads, and packaging machinery. Feature: Robust mechanicals (Bearing 6206, Insulation Class H, Ambient 40 °C, Service Factor 1.15). Business Impact: Enhanced reliability in demanding environments, extended maintenance intervals, and predictable performance under peak loads. Application: Continuous-duty, washdown-intensive lines in food and beverage facilities.
