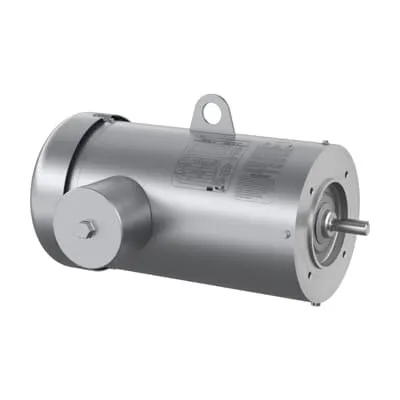

ABB 7BVFSWDM3651-E Washdown Motor - TEFC, 3HP
Part Number: 7BVFSWDM3651-E
Quick Summary
ABB Washdown Motor 7BVFSWDM3651-E delivers 3 HP, 60 Hz performance for food-processing lines and hygienic manufacturing. This design addresses corrosive washdown environments by combining a stainless-steel frame with a TEFC enclosure, reducing contamination risk and maintenance downtime. Certifications such as CSA EEV, NEMA Premium Efficiency, and UR recognition reinforce reliability and regulatory compliance in demanding industries. The model supports 230/460 V operation with a 56C frame, C-face mounting, and a footprint that aligns with modern factory layouts, helping you streamline installation, reduce energy costs, and meet stringent hygiene standards for durable, long-life performance.
Product Information
Extended Description
7BVFSWDM3651-E ABB: Washdown Motor 3 Hp 230 V (VFSWDM3651-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,56C,TEFC,F1
Ambient Temperature
40 °C
Bearing
6207
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VFSWDM3651-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LY-000-048
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDM3651-E
Gross Volume
7192.91 inÂł
Gross Weight
83 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
3HP,1760RPM,3PH,60HZ,56C,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 3 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VFSWDM3651-E)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
76 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
83 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
3 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The stainless-steel frame and TEFC enclosure deliver robust corrosion resistance in washdown environments, reducing maintenance frequency and extending motor life on beverage and dairy processing lines. This translates to lower total cost of ownership and improved uptime for high-output packaging lines. Feature → Business Impact → Application: Premium efficiency (89.5%) and a 1.15 service factor enable measurable energy savings and enhanced load tolerance in continuous-duty operations, supporting cost-effective operation across 60 Hz systems and multiple voltages (230/460 V). Feature → Business Impact → Application: 56C frame with C-face mounting and footless base simplifies installation and alignment, minimizing commissioning time and vibrational issues on compact conveyor or mixer stations. Feature → Business Impact → Application: 3-phase, 1760 rpm nominal speed (1800 r/min synchronous) ensures smooth control for homogenized product handling in food processing. Feature → Business Impact → Application: Stainless steel frame and Food Safe Washdown designation provide hygienic reliability in clean-in-place environments, improving compliance and reducing sanitation-related downtime in lines such as filling, packaging, and volumetric dosing. Feature → Business Impact → Application: Zero-day lead time and stock at multiple warehouses enable rapid deployment, reducing project lead times and optimizing procurement cycles for OEM integrations and retrofits.
Get a Quick Quote for a ABB 7BVFSWDM3651-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFSWDM3651-E?
Enquire Now
FAQs
Yes. The 56C frame with a C-face mounting design is optimized for horizontal installation, and the footless base simplifies mounting in constrained installations. The motor also supports horizontal orientation and provides straightforward alignment with standard shafts and couplings, reducing commissioning time and minimizing vibration during startup in packaging and processing lines.
The motor operates at 230 V or 460 V, 60 Hz, three-phase, with a nominal speed of 1760 r/min (1800 r/min synchronous). It delivers 3 HP with a rated current of 8.4 A or 4.2 A, and an efficiency of 89.50% with a service factor of 1.15. Insulation class is H, and the unit uses a TEFC enclosure for reliability in washdown environments.
Absolutely. Marketed as a Food Safe Washdown motor, it features a stainless-steel frame and TEFC enclosure designed to withstand frequent washdowns. It’s ideal for dairy, beverage, and meat processing lines, offering hygienic performance, easy cleaning, and compliance with industry hygiene standards while maintaining reliable power delivery.
The motor carries CSA EEV, UR, and NEMA Premium Efficiency certifications. CSA EEV and UR indicate compliance with electrical safety and performance standards, while NEMA Premium ensures high-efficiency operation, reducing energy costs and supporting regulatory and environmental requirements in industrial facilities.
Expect reduced maintenance downtime due to the TEFC enclosure and corrosion-resistant stainless-steel frame, plus energy savings from the 89.5% efficiency and 1.15 service factor. The motor ships with short lead times (0 day) and is stocked in multiple warehouses, supporting rapid deployment and lower total cost of ownership in OEM integrations or facility upgrades.
