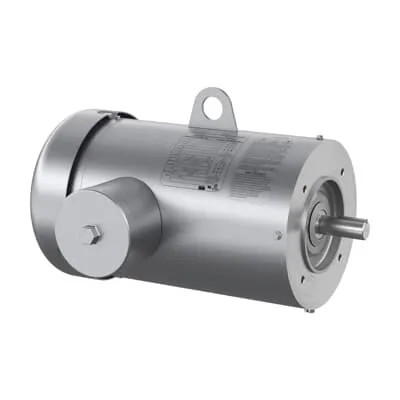

ABB VFSWDM3651T-E Washdown Motor - NEMA Premium Efficiency
Part Number: 7BVFSWDM3651T-E
Quick Summary
The washdown motor VFSWDM3651T-E drives clean, reliable 3 HP performance for food processing and hygienic manufacturing lines. In washdown environments, repeated cleaning and moisture challenge motor seals and corrosion resistance; this ABB unit addresses that with robust TEFC enclosure and stainless steel frame. It carries critical certifications—NEMA Premium efficiency, CSA EEV, and UR listing—to support global procurement and compliance programs. Coupled with a 60 Hz, 230/460 V configuration and horizontal mounting, it delivers dependable uptime and measurable energy savings. The motor features a 145TC frame, 1760 rpm, and 3-phase design, enabling straightforward integration into existing line equipment. Its stainless steel body supports sanitary washdowns and reduces maintenance costs over the motor's service life.
Product Information
Extended Description
7BVFSWDM3651T-E ABB: Washdown Motor 3 Hp 230 V (VFSWDM3651T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,145TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6207
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VFSWDM3651T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LY-000-047
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDM3651T-E
Gross Volume
7192.91 in³
Gross Weight
83 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
3HP,1760RPM,3PH,60HZ,145TC,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 3 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VFSWDM3651T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
76 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
83 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
The TEFC enclosure with a stainless steel frame provides corrosion resistance and washdown compatibility, reducing maintenance downtime in hygienic facilities. This translates to higher line uptime when integrated into food processing equipment and beverage packaging lines. The 3 HP, 1760 rpm, 60 Hz, 230/460 V three-phase configuration ensures compatibility with standard plant power and enables efficient operation across shifts, driving measurable energy savings in continuous-duty lines. Premium efficiency (89.50%) and a 1.15 service factor reduce running costs while maintaining performance under load surges common in packaging and processing equipment. Durable bearings (6207 drive end, 6206 NDE) and insulation class H support long life in high-temperature washdown environments, lowering maintenance and replacement cycles. The 145TC frame with C-face mounting and footless base simplifies installation in compact line layouts and supports consistent alignment with existing conveyors and mixers. A stainless steel frame and TEFC enclosure also facilitate sanitary cleaning cycles, reducing contamination risk and simplifying routine validation. These design choices translate to lower total cost of ownership by boosting uptime, decreasing maintenance events, and enabling faster commissioning on new lines.
Get a Quick Quote for a ABB 7BVFSWDM3651T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFSWDM3651T-E?
Enquire Now
FAQs
The motor uses horizontal C-face mounting with a 145TC frame and a footless base. It is a 3-phase, 60 Hz device operable at 230 V or 460 V with TEFC enclosure, simplifying integration into standard industrial power architectures.
It provides 3 HP at 1760 rpm (4-pole), with a service factor of 1.15 and 89.5% efficiency. Insulation class is H, and the unit uses a stainless steel frame for washdown resilience. Bearings are 6207 (drive end) and 6206 (NDE).
Yes. The VFSWDM3651T-E is designed as a Food Safe Washdown motor with a stainless steel frame and TEFC enclosure, built to withstand frequent cleaning and high-pressure washdowns in food, beverage, and pharmaceutical lines while meeting regulatory expectations.
The motor carries CSA EEV, UR listing, and NEMA Premium efficiency certifications, supporting safety, energy performance, and international procurement requirements.
Low-maintenance bearing design, rugged frame, and high efficiency reduce energy use and downtime. Direct-on-line starting simplifies control schemes and speeds commissioning, delivering a lower total cost of ownership in continuous-duty washdown applications.
