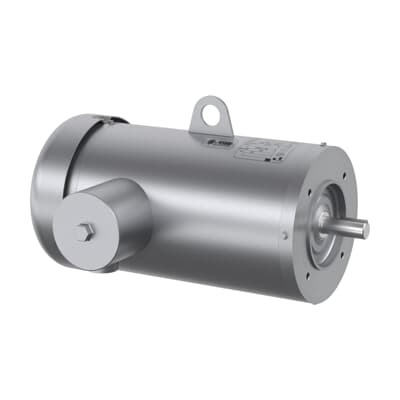

ABB 7BVFSWDM3651T-E-G Washdown Motor - NEMA_PREMIUM
Part Number: 7BVFSWDM3651T-E-G
Quick Summary
The ABB 7BVFSWDM3651T-E-G Washdown Motor delivers reliable 3 HP power for hygienic, food-safe applications such as beverage lines, processed foods, and sanitary conveyors. This design addresses the persistent challenge of equipment exposed to frequent washdowns and caustic cleaners by combining corrosion-resistant materials with a robust enclosure. It carries key certifications and design standards to support compliance and uptime in regulated environments, including CSA EEV, UR, and NEMA Premium efficiency. The motor’s 230/460 V, 60 Hz, 3-phase operation and TEFC enclosure deliver steady performance with reduced energy waste, while its stainless frame and precise mounting options support long service life and simpler installation across facilities seeking measurable ROI and operational reliability.
Product Information
Extended Description
7BVFSWDM3651T-E-G ABB: Washdown Motor 3 Hp 230 V (VFSWDM3651T-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,145TC,3636M,TE
Ambient Temperature
40 °C
Bearing
6207
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFSWDM3651T-E-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDM3651T-E-G
Gross Volume
7192.91 inÂł
Gross Weight
83 lb
Insulation Class
H
Invoice Description
3HP,1760RPM,3PH,60HZ,145TC,3636M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 3 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (VFSWDM3651T-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
76 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
83 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
3 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium Efficiency (NEMA Premium) reduces energy consumption and operating costs across high-cycle facilities; paired with a TEFC enclosure, this motor minimizes heat and protection failures in washdown zones, leading to lower maintenance and longer service life in food processing lines. Application: Sanitary conveyors and CIP systems benefit from energy-efficient operation and reliable protection in harsh washdown cycles. Feature → Business Impact → Application: Stainless steel frame material enhances corrosion resistance in caustic cleaners and humid environments; this translates to reduced replacement cycles and improved sanitation compliance for dairy and beverage lines. Application: Food-safe washdown contexts where hygiene and cleaning-in-place are critical. Feature → Business Impact → Application: 145TC frame with C-Face drive end flange enables straightforward, tool-friendly installation and retrofit compatibility; reduces downtime during installation and replacements in plant upgrades. Application: Retrofit projects and new lines requiring fast, predictable installation. Feature → Business Impact → Application: Direct-on-line (DOL) start and 3-phase, 60 Hz operation simplify electrical design and integration with existing plant controls; supports lower integration costs and faster commissioning. Application: New line builds and modernization projects. Feature → Business Impact → Application: 0-day lead time and multi-warehouse stocking improve spare-part availability; minimizes downtime risk and inventory carrying costs. Application: Critical production lines where uptime is prioritized. Feature → Business Impact → Application: 3 HP, 1760 RPM performance with 60 Hz operation provides consistent torque for belt drives and conveyors; supports stable line speeds and process control. Application: Food processing and packaging lines requiring predictable motor behavior. Feature → Business Impact → Application: 230/460 V dual voltage rating offers flexibility for regional electrical infrastructure; simplifies sourcing and reduces installation complexity. Application: Global facilities operating on different supply voltages.
