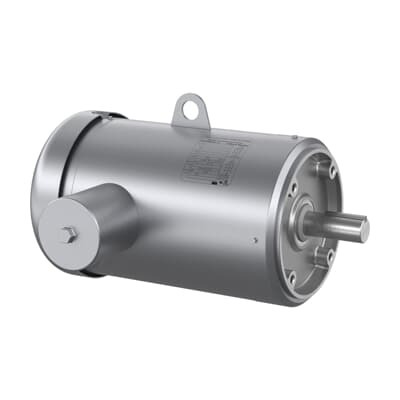

ABB VFSWDM3709T-E Washdown Motor - 7.5HP 60Hz TEFC
Part Number: 7BVFSWDM3709T-E
Quick Summary
Washdown motor ABB VFSWDM3709T-E is a washdown motor designed for hygienic production lines requiring reliable, efficient operation. Downtime from corrosion and frequent cleaning can erode productivity and margins, but this unit is engineered to survive washdown cycles and CIP routines. It carries CSA, CSA EEV, and UR listings and aligns with NEMA premium efficiency standards, providing regulatory confidence across diverse facilities. The 60 Hz, 230/460 V three-phase input and TEFC enclosure combine to minimize sealing failures while enabling straightforward integration with standard drives and VFDs. A stainless steel frame and C-face mounting support hygienic construction and flexible installation in tight spaces, while the 213TC frame size and 1.15 service factor sustain reliable, long-term operation in food, beverage, and other clean-in-place applications.
Product Information
Extended Description
7BVFSWDM3709T-E ABB: Washdown Motor 7.5 Hp 230 V (VFSWDM3709T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3500RPM,3PH,60HZ,213TC,3734M,
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6307 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFSWDM3709T-E
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYQ227
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDM3709T-E
Gross Volume
7192.91 inÂł
Gross Weight
131 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
7.5HP,3500RPM,3PH,60HZ,213TC,3734M,TEFC
Made To Order
No
Medium Description
Food Safe Washdown, 7.5 HP, 3600 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VFSWDM3709T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
213TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
93 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
131 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16.8 A | 8.3 A
Rated Efficiency
91 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
7.5 HP, 3600 RPM, Frame Size 213Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and stainless steel frame provide corrosion resistance and easy cleanability in high-pressure washdown environments. Business Impact: Reduces maintenance cycles and downtime, extending motor life and lowering total cost of ownership. Application: Food and beverage lines, dairy equipment, CIP-enabled conveyors. The motor’s robust construction minimizes sanitary risk while supporting continuous production in harsh cleaning regimes. Feature: 213TC frame, C-face mounting, and horizontal mounting options offer compatibility with common conveyor bases and gear reducers. Business Impact: Simplifies installation, reduces retrofit time, and accelerates time-to-production. Application: Food processing lines requiring flexible mounting in tight spaces. Feature: 60 Hz, 230/460V three-phase input with direct-on-line starting and a 3500 r/min rated speed (3600 r/min synchronous). Business Impact: Standardized power integration with global facilities and reliable start-up performance. Application: Global manufacturing plants and packaging lines. Feature: Rated efficiency of 91% and service factor of 1.15 deliver energy savings and tolerance for start/stop duty cycles. Business Impact: Lower energy consumption, improved electrical reliability, and extended equipment life. Application: Continuous operation in high-demand washdown processes. Feature: Bearing 6307 ball and insulation class H enhance durability and thermal performance. Business Impact: Greater resistance to vibration and heat, reducing maintenance intervals. Application: High-load conveyors and sanitary processing equipment. Feature: NEMA design compliance and CSA/UR listings provide regulatory reassurance. Business Impact: Faster approval with customers and auditors, enabling smoother procurement and installation. Application: Multinational facilities with strict compliance requirements.
Get a Quick Quote for a ABB 7BVFSWDM3709T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFSWDM3709T-E?
Enquire Now
FAQs
This motor uses a 213TC frame with C-face mounting and horizontal orientation, suitable for standard footless bases and common conveyor bases. It supports 230/460 V, 3-phase supply at 60 Hz and offers DCOL start options when paired with VFDs. Ensure mounting alignment with a compatible drive end flange and check shaft diameter of 1.38 in for coupling compatibility. The TEFC enclosure simplifies maintenance in washdown environments and ensures tight sealing against CIP detergents.
Key specs include 7.5 HP output, 3500 r/min nominal speed with 3600 r/min synchronous speed, 60 Hz operation, and an operating voltage of 230 V or 460 V (3-phase). The rated current is 16.8 A (nominal) with a service factor of 1.15 and a rated efficiency of 91%. The motor uses a TEFC enclosure and a stainless steel frame (213TC) for rugged washdown performance.
Yes. The motor is designed for hygienic environments, featuring a TEFC enclosure and a stainless steel frame suitable for food-grade washdowns. It carries CSA, CSA EEV, and UR certifications, and adheres to NEMA premium efficiency standards, ensuring safe operation, regulatory compliance, and energy-efficient performance in dairy, meat, and beverage processing lines.
The VFSWDM3709T-E carries CSA, CSA EEV, and UR certifications and is built to NEMA premium efficiency standards. It uses a TEFC enclosure and is compatible with standard 60 Hz, 230/460 V three-phase systems. These certifications support regulatory approvals across multiple regions and help with auditor readiness in food and pharma facilities.
The motor’s high efficiency (91%) and 1.15 service factor translate to lower energy costs and robust start/stop performance, reducing utility spend and wear. The stainless frame and TEFC enclosure minimize maintenance related to corrosion and ingress, while its compatibility with standard drives simplifies upgrades. Overall, you can expect improved uptime, lower lifecycle costs, and quicker provisioning in lean-manufacturing environments.
