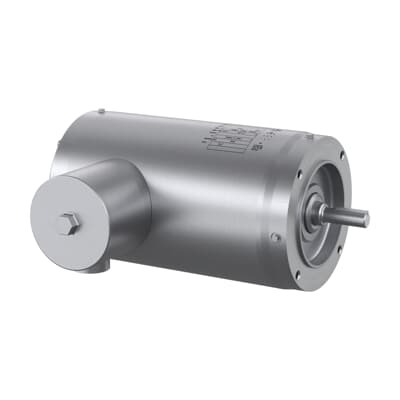

ABB 7BVFSWDNM3554-E-G Washdown Motor - NEMA Premium
Part Number: 7BVFSWDNM3554-E-G
Quick Summary
ABB 7BVFSWDNM3554-E-G washdown motor delivers 1.5 HP power for food-processing and hygienic lines. Operators face corrosion, frequent cleaning downtimes, and variable performance in washdown zones; this motor is built to withstand those conditions. It carries premium efficiency (NEMA Premium), CSA EEV, and UR recognition to meet energy, safety, and regulatory requirements. The stainless steel frame and TENV enclosure deliver sanitation and corrosion resistance, while the C-face mounting provides flexible installation. In practice, customers see lower maintenance costs and higher uptime across demanding production environments.
Product Information
Extended Description
7BVFSWDNM3554-E-G ABB: Washdown Motor 1.5 Hp 230 V (VFSWDNM3554-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1765RPM,3PH,60HZ,56C,3540M,TE
Ambient Temperature
40 °C
Bearing
6205
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFSWDNM3554-E-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDNM3554-E-G
Gross Volume
3496.049 inÂł
Gross Weight
59 lb
Insulation Class
H
Invoice Description
1.5HP,1765RPM,3PH,60HZ,56C,3540M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (VFSWDNM3554-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
77 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
59 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.2 A | 2.1 A
Rated Efficiency
86.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35E6050Z820G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Shaft Grounding
Shaft Grounding
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Premium efficiency design delivers meaningful energy savings over the motor’s lifecycle, reducing operating costs in continuous-process applications. This directly supports plant-wide energy optimization programs and helps meet corporate sustainability targets. The 1.5 HP, 3-phase, 60 Hz configuration at 230/460 V ensures reliable torque delivery for conveyors and mixers common in food and beverage lines, improving throughput with fewer voltage-related performance dips. The stainless steel frame paired with a TENV enclosure provides excellent washdown resilience, lowering corrosion risk and easing sanitation cycles—essential for compliant sanitary environments and easier regulatory audits. The 56C frame with C-face drive end flange and horizontal F1 mounting simplifies installation, alignment, and field retrofits, minimizing downtime during maintenance windows and accelerating project timelines. Direct-on-line starting supports straightforward commissioning in existing control schemes, reducing drive hardware complexity and startup costs. The motor’s 0.63 inch shaft diameter and robust bearing (6205) contribute to steady operation under load, increasing mean time between failures in demanding production lines. Stock availability across multiple warehouses and a 0-day lead time further reduces procurement delays and short-notice production shifts, delivering tangible ROI for operations teams investing in hygienic automation.
Get a Quick Quote for a ABB 7BVFSWDNM3554-E-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFSWDNM3554-E-G?
Enquire Now
FAQs
Plan for horizontal mounting with the C-face drive end flange (F1). The motor is 56C frame, stainless steel, 3-phase, with 230/460 V operation at 60 Hz and Direct-on-Line starting. Ensure your enclosure and washdown area accommodate a TENV enclosure and that mounting hardware supports a footless base. Alignment and coupling should follow standard 56C motor practices to minimize vibration.
The motor is 1.5 HP, 3-phase, 60 Hz, rated for 230 V or 460 V operation. Rated current is 4.2 A at 230 V and 2.1 A at 460 V. The nominal speed is 1750 r/min with a 56C frame and premium efficiency class. It starts Direct-on-Line and is designed for continuous duty in demanding environments.
Yes. It is a Food Safe Washdown motor with a stainless steel frame and TENV enclosure, designed to withstand frequent cleaning, high humidity, and washdown cycles typical in food and beverage lines. The 1.5 HP output and 56C frame provide reliable torque for conveyors and mixers without sacrificing sanitation standards.
This ABB unit carries NEMA Premium efficiency, CSA EEV, and UR recognition, aligning with energy, safety, and regulatory requirements. These certifications support compliance programs and audit readiness for regulated industries such as food processing and consumer packaging.
Stocked in multiple warehouses with 0-day lead time, this motor reduces order wait times and project downtime. Its corrosion-resistant build, easy installation, and direct-on-line starting translate to lower maintenance costs, reduced downtime, and faster ROI for plants prioritizing uptime in harsh washdown environments.
