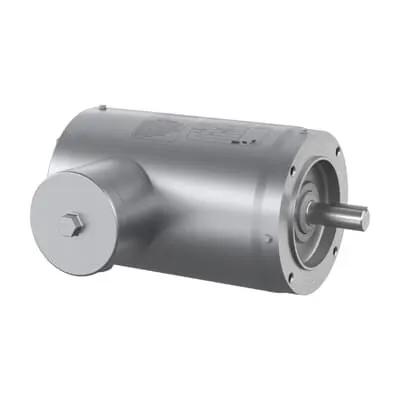

ABB 7BVFSWDNM3558T-E Washdown Motor - NEMA Premium
Part Number: 7BVFSWDNM3558T-E
Quick Summary
Washdown Motor for food-safe environments delivers reliable, high-efficiency performance in processing and packaging lines. The ABB 7BVFSWDNM3558T-E is a 2 HP, 230/460 V, three-phase washdown motor designed for hygienic operations, featuring a stainless steel frame and sealed bearings to withstand washdown cycles. Operators often battle corrosion,衛生 compliance, and unpredictable downtime; this motor mitigates those risks with a durable frame, 40 °C ambient rating, and a robust TENV enclosure. Certifications such as CSA EEV, UR recognition, and NEMA Premium signal strong compliance and long-term reliability. Stocked at multiple warehouses with 0-day lead times, it enables rapid sourcing for production lines. The model aligns with C-face mounting and 145TC frame standards, supporting straightforward installation and scalable, high-throughput performance in food and beverage settings.
Product Information
Extended Description
7BVFSWDNM3558T-E ABB: Washdown Motor 2 Hp 230 V (VFSWDNM3558T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,145TC,3546M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VFSWDNM3558T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4717
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDNM3558T-E
Gross Volume
3496.049 inÂł
Gross Weight
63 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
2HP,1760RPM,3PH,60HZ,145TC,3546M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VFSWDNM3558T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
78 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
63 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
88.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35E4717Z811G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 2 HP, 60 Hz, three-phase configuration delivers steady, predictable torque with minimal ripple, improving pump and conveyor drive efficiency in packaging lines. This translates to lower energy costs and less motor wear, contributing to a measurable total cost of ownership reduction over time. Feature → Application: Stainless steel frame and 6205 sealed bearings provide corrosion resistance in washdown environments, extending service intervals and reducing maintenance labor in meat, dairy, or beverage processing facilities. Feature → Application: TENV enclosure and C-face mounting enable installation in tight spaces with flexible orientation, improving retrofit viability and commissioning speed on existing lines. Feature → Application: 230/460 V compatibility and Direct-On-Line starting simplify electrical design, enabling faster panel wiring and reducing soft-start equipment needs. Feature → Application: Premium efficiency designation (NEMA Premium) supports compliance with energy regulations and delivers measurable energy savings across high-duty cycles. Feature → Application: 0-day lead time and regional warehouse stock ensure rapid fulfillment, reducing downtime risk during line startups and seasonal demand peaks. The combination of food-safe description, robust bearings, and hygienic-ready enclosure makes this motor a practical choice for food processing, pharmaceutical packaging, and consumer goods assembly where washdown performance is non-negotiable.
Get a Quick Quote for a ABB 7BVFSWDNM3558T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFSWDNM3558T-E?
Enquire Now
FAQs
Yes. The motor supports direct-on-line (DOL) starting and is rated for 3-phase operation at 230/460 V and 60 Hz. For speed control or smooth start, VFDs can be used within the motor's 4-pole, 1750 r/min characteristic, while ensuring the drive voltage and current align with the 5.6 A (230 V) / 2.8 A (460 V) rating and with a proper enclosure protection in washdown environments.
The motor uses a 145TC frame with C-face drive end flange, enabling horizontal mounting and easy bolting to standard bases or existing equipment. Footless base configuration improves installation flexibility in tight spaces, and the C-face interface supports common drive and coupling adapters used in conveyors and mixers.
It features a stainless steel frame and a TENV enclosure designed to tolerate frequent washdowns and high-pressure cleaning. The food-safe product labeling, combined with sealed bearings (6205) and durable construction, minimizes corrosion risk and supports sanitary operation in meat, dairy, and beverage environments.
Key certifications include CSA EEV, UR recognition, and NEMA Premium efficiency. These indicate electrical safety compliance, quality assurance under recognized standards, and energy efficiency, helping reduce regulatory risk and total cost of ownership in regulated industries.
With 0-day lead time and regional stocking, you minimize downtime during commissioning and replacements. The sealed bearings plus a robust enclosure reduce maintenance intervals, while the high-efficiency rating lowers operating costs over the motor’s lifetime, delivering faster payback in continuous-duty washdown lines.
