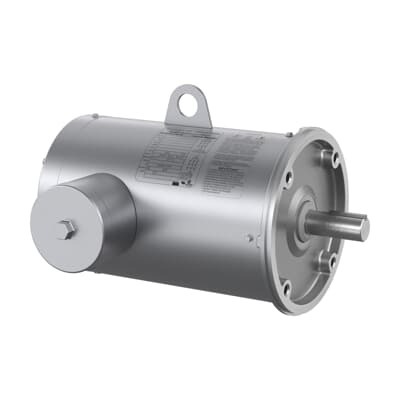

ABB Washdown Motor VFSWDNM3611T-E - NEMA Premium
Part Number: 7BVFSWDNM3611T-E
Quick Summary
ABB washdown motor delivers reliable 3 HP, 230 V operation for hygienic food-processing equipment and clean-in-place systems. Many standard motors struggle in washdown environments, leading to corrosion, leaks, and downtime. This model features NEMA Premium efficiency, CSA EEV and UR certifications, a TENV enclosure, and a stainless-steel frame to withstand frequent cleaning and high-pressure sanitizing cycles. Its 182TC frame, 60 Hz operation, and 3-phase, 4-pole design support scalable installations across packaging lines and dairy, beverage, and meat-processing facilities. Designed for reliability and total cost of ownership, it pairs with standard VFDs and meets stringent sanitary and energy performance requirements.
Product Information
Extended Description
7BVFSWDNM3611T-E ABB: Washdown Motor 3 Hp 230 V (VFSWDNM3611T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1750RPM,3PH,60HZ,182TC,3646M,TE
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VFSWDNM3611T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYR540
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDNM3611T-E
Gross Volume
5274.135 inÂł
Gross Weight
101 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
3HP,1750RPM,3PH,60HZ,182TC,3646M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VFSWDNM3611T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
79 %
Product Name
Food Safe Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
101 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8 A | 4 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The TENV enclosure provides a robust thermal environment that resists moisture ingress during washdowns, reducing maintenance downtime and extending motor life in sanitary facilities such as meat-packing lines and dairy processing. This translates to lower replacement costs and fewer production interruptions in high-pressure CIP cycles. Feature → Business Impact → Application: The 182TC frame with C-Face mounting and a footless base enables compact, adaptable installations and straightforward retrofit into existing equipment, accelerating deployment on new packaging lines and retrofit projects without costly substitutions. Feature → Business Impact → Application: Premium efficiency (89.5%) and a 1.15 service factor deliver tangible energy savings and higher torque reserves for peak loads, supporting continuous operation in bottling, confectionery, and beverage conveyors while reducing operating expenses. Feature → Business Impact → Application: 3-phase, 60 Hz operation at 230/460 V and direct-on-line starting simplify electrical design, minimize starter equipment, and shorten commissioning time on new washdown conveyors and CIP skids. Feature → Business Impact → Application: Stainless-steel frame, sealed 6206 bearings, and an IP-conscious design bolster corrosion resistance and sanitation compatibility, yielding longer maintenance intervals and compliant performance in meat, dairy, and seafood processing. Feature → Business Impact → Application: CSA EEV, UR, and NEMA Premium certifications along with a TENV enclosure provide traceable compliance and risk reduction for regulated facilities, helping auditors and procurement teams meet industry standards while safeguarding uptime.
Get a Quick Quote for a ABB 7BVFSWDNM3611T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFSWDNM3611T-E?
Enquire Now
FAQs
The VFSWDNM3611T-E uses a 182TC frame with C-Face mounting and a footless base for flexible installation. It is a 3-phase motor rated for 230/460 V at 60 Hz, suitable for direct-on-line starts and straightforward integration with common VFDs on washdown conveyors, CIP skids, and sanitary processing lines.
Key specs include Premium efficiency (NEMA Premium), 89.5% rated efficiency, service factor 1.15, and 3 HP output at 1750 r/min. The motor features a TENV enclosure and sealed bearings (6206), designed to withstand frequent cleaning and sanitize cycles common in food and beverage processing.
Yes. The Food Safe Washdown designation, stainless-steel frame, TENV enclosure, and 60 Hz operation make it well-suited for dairy, meat, and other sanitary processing lines, where frequent washdowns and CIP are standard. Its NEMA Design B and robust bearings support continuous operation under typical industry duty conditions.
The motor carries CSA EEV, UR recognition, and NEMA Premium efficiency status. These certifications support regulatory compliance, safety audits, and energy-performance reporting, helping procurement meet industry and regional requirements while reducing risk during supplier qualification.
With sealed bearings and a stainless-steel frame, maintenance intervals are extended and cleaning-related wear is minimized. The motor’s energy efficiency and low downtime contribute to reduced operating costs and shorter payback periods in facilities prioritizing continuous sanitary operations and uptime.
