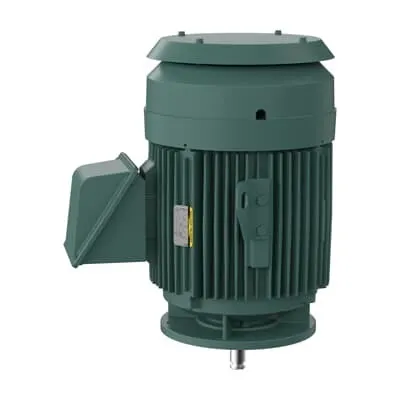

ABB 7BVHECP84316T-4 Pump Motor - IP56 Premium Efficiency
Part Number: 7BVHECP84316T-4
Quick Summary
ABB 7BVHECP84316T-4 Pump Motor provides reliable close-coupled pumping for industrial processes. This design addresses space constraints, energy costs, and maintenance challenges common to mid to large-scale pumps. With IP56 protection, TEFC enclosure, and NEMA-aligned performance, it suits harsh plant environments and demanding duty cycles. The unit’s 75 HP rating at 460 V and 60 Hz three-phase operation supports continuous operation in process lines while offering easy procurement through stocked inventories. By standardizing on this Baldor-Reliance motor, engineering teams can streamline spare parts, reduce downtime, and improve overall project ROI in water treatment, chemical processing, and general industrial pumping applications.
Product Information
Extended Description
7BVHECP84316T-4 ABB: Pump Motor 75 Hp 460 V (VHECP84316T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365HP,A36070M
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VHECP84316T-4
Certification Agency
CCSA US | CCSAUSEEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
P-Base
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VHECP84316T-4
Gross Volume
42126 in³
Gross Weight
1008.001 lb
IP Class
IP56
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365HP,A36070M,TEFC
Made To Order
No
Medium Description
Close Coupled Pump, 75 HP, 1800 RPM, Frame Size 365Hp, PBase Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (VHECP84316T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
365HP
Mounting Orientation
Vertical
Mounting Position
V1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
Close Coupled Pump
Product Net Depth / Length
42 in
Product Net Height
29.5 in
Product Net Weight
1008.001 lb
Product Net Width
34 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
86 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
75 HP, 1800 RPM, Frame Size 365Hp, PBase, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Type of Duty
Continuous
Voltage Rating
460 V
Feature → Business Impact → Application: The close-coupled design with P-Base mounting reduces alignment time and minimizes footprint, delivering faster installation and compact footprint in tight equipment spaces for 75 HP pump systems. This translates to lower commissioning costs and a smaller physical plant footprint in water treatment or process industries. Feature → Business Impact → Application: Premium Efficiency (NEMA) lowers operating energy, delivering measurable cost reductions on long-running pumping lines, especially in continuous-duty operations such as cooling loops and chemical processing lines. Feature → Business Impact → Application: IP56 TEFC enclosure protects against dust and moisture, extending service intervals and reducing maintenance costs in outdoor equipment rooms and harsh production floors. Feature → Business Impact → Application: Vertical mounting with V1 orientation and 3-phase, 460 V supply offers installation flexibility and straightforward retrofits in existing pump skids, enabling rapid upgrades without extensive structural changes. Feature → Business Impact → Application: Robust NEMA design and 1.15 service factor provide extra torque during start-up, improving reliability in high-inertia pumps and reducing the risk of stall in demanding duty cycles. Feature → Business Impact → Application: Stocked At Warehouses and 0-day lead times support fast quotes and rapid replacement, ensuring uptime across critical process lines in industries like water treatment, chemical processing, and general industrial pumping.
Get a Quick Quote for a ABB 7BVHECP84316T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVHECP84316T-4?
Enquire Now
FAQs
Yes. This motor is specified for 460 V, 60 Hz, three-phase operation and supports direct-on-line starting, making it a straightforward retrofit or integration into existing VFD-driven or plain three-phase pump setups.
It uses a vertical mounting orientation (V1) with a P-Base drive end flange and a footless motor base, enabling flexible installation on standard pump decks and compact spaces.
The unit features Premium Efficiency (NEMA) with a service factor of 1.15, offering improved torque margins and energy savings during continuous operation of pump systems.
The motor adheres to NEMA standards and IP56 protection, with multiple approvals (CCSA US, CCSAUSEEV, UR) to support regulatory compliance and safe operation in demanding environments.
Ideal for close-coupled pump applications in water treatment, chemical processing, and other continuous-process uses, where space, reliability, and energy efficiency are priorities. It also offers quick lead times and broad warehouse stocking to minimize downtime.
