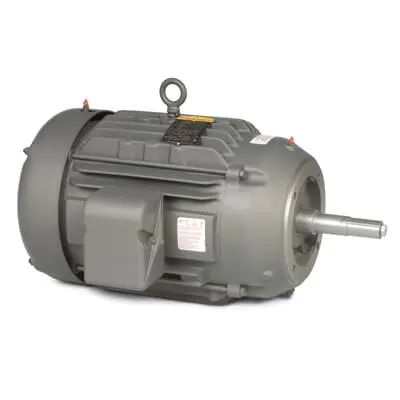

ABB 7BVJMM2334T-5 Motor - NEMA B, 20HP, 1760RPM
Part Number: 7BVJMM2334T-5
Quick Summary
ABB 7BVJMM2334T-5 motor provides reliable 3-phase power for industrial LV pump systems. In critical pumping applications, downtime or inefficiency can drive maintenance costs and energy waste. This motor is designed with a TEFC enclosure, 575 V rating, and a robust 256JM frame to withstand demanding plant environments. It carries CSA and UR safety certifications and aligns with NEMA design standards, supporting straightforward compliance and integration with typical plant controls. For operators and procurement teams, the combination of 20 HP at 1760 rpm and a service factor of 1.15 delivers predictable performance with lower risk of overload, while ENERGY EFFICIENCY at 91% helps reduce energy bills. The US-made origin and direct-on-line starting simplify installation and maintenance planning across facilities.
Product Information
Extended Description
7BVJMM2334T-5 ABB: 575 V
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1760RPM,3PH,60HZ,256JM,0944M,T
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Efficiency Level
Energy Efficiency (NEMA 12-11) | IE2 | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VJMM2334T-5
Gross Volume
0.25 in³
Gross Weight
125.304 kg
Horsepower Rating UL/CSA
20.000 Hp
Invoice Description
20HP,1760RPM,3PH,60HZ,256JM,0944M,TEFC
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
No Mounting
Motor Frame Size
256JM
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Speeds
Single Speed
Order Multiple
1 piece
Power Factor
86 %
Product Name
LV Pump Motors
Product Net Depth / Length
1.27 cm
Product Net Height
2.54 cm
Product Net Weight
125.304 kg
Product Net Width
1.27 cm
Product Type
Undefined
Quote Only
No
Rated Current (In)
19.1 A
Rated Efficiency
91.0 %
Rated Speed
1,760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China
UNSPSC
26101107
Voltage Rating
575 V
Feature: 3-phase motor design at 575 V aligns with standard US industrial power distribution; Benefit: simplifies wiring and controls while minimizing voltage conversion losses; Application: suitable for 60 Hz pump systems in water treatment and process lines. Feature: TEFC enclosure provides robust protection against dust, moisture, and environmental contaminants; Benefit: reduces winding wear and maintenance cycles; Application: outdoor or harsh indoor environments. Feature: 91% efficiency and 0.86 PF; Benefit: lowers energy consumption and operating costs over long production runs; Application: continuous duty in conveyors, fans, and pump assemblies. Feature: NEMA design B with a 1.15 service factor and Direct On Line start; Benefit: reliable torque and simplified start-up without soft-start hardware; Application: demanding load profiles in OEM and retrofit projects. Feature: Frame 256JM, 1760 r/min, 20 HP; Benefit: compact, readily available footprint with strong torque characteristics; Application: retrofit projects and new installations across standard mounting footprints. Certifications CSA | UR and adherence to NEMA standards ensure regulatory compliance and smoother integration with plant controls.
