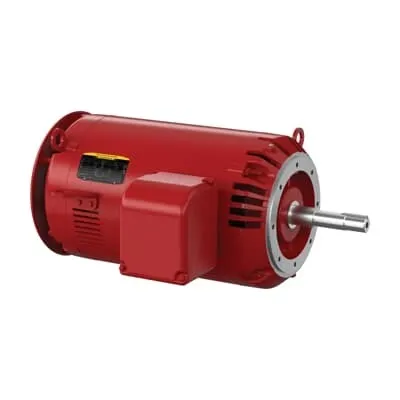

ABB 7BVJPFPM2559T-4 Pump Motor - CSA EEV CULUS
Part Number: 7BVJPFPM2559T-4
Quick Summary
ABB 7BVJPFPM2559T-4 Pump Motor delivers reliable 100 Hp power for fire pump applications in industrial facilities. This model is engineered for demanding service, delivering consistent torque and dependable operation across 50/60 Hz grids. Engineers often contend with downtime, incompatible enclosures, and variable voltage during replacements; this motor addresses those concerns with a US-origin supply, rapid availability, and a robust OPSB enclosure. The unit carries CSA EEV and CULUS listings and aligns with NEMA design standards, underscoring safety and regulatory compliance. By choosing this motor, buyers gain a durable, readily stocked solution that reduces maintenance cycles and procurement complexity across multi-site operations, especially for fire pump and water-handling systems.
Product Information
Extended Description
7BVJPFPM2559T-4 ABB: Pump Motor 100 Hp 380 V (VJPFPM2559T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
76M 4P OPSB VER 405TCZ DRIPCOVER
Ambient Temperature
40 °C
Bearing
6316, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VJPFPM2559T-4
Certification Agency
CSA EEV | CULUS
Country of Origin
United States (US)
Customs Tariff Number
85015381
Drive End Flange Type
C-Face
Efficiency Level
Energy Efficiency (NEMA 12-11) | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
405
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
VJPFPM2559T-4
Gross Volume
48265.125 in³
Gross Weight
590 lb
Insulation Class
F
Invoice Description
76M 4P OPSB VER 405TCZ DRIPCOVER
Made To Order
No
Medium Description
Fire Pump, 125//100 HP, Frame Size 405Tcz, C-Face Mounting, 3 Phase, OPSB Enclosure, (VJPFPM2559T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
405TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
100 Hp | 125 Hp
Power Factor
85 %
Product Name
Fire Pump
Product Net Depth / Length
51 in
Product Net Height
28.25 in
Product Net Weight
590 lb
Product Net Width
33.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
141 A
Rated Efficiency
94.50 %
Rated Speed
1475 r/min | 1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
125//100 HP, Frame Size 405Tcz, C-Face, 3 PH, OPSB,
Standards
NEMA
Starting of Motor
Wye Start - Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
Voltage Rating
380 V | 460 V
Feature → Business Impact → Application: The 7BVJPFPM2559T-4 is a three-phase motor rated for 380 V to 460 V operation with 100 Hp output and a 4-pole configuration (1475 r/min / 1775 r/min). This combination delivers efficient performance, lower energy costs, and reliable startup for fire pump systems, enabling stable water supply during peak demand. In practice, facilities see improved system uptime and predictable power draw for critical infrastructure, with compatibility for standard 405TCZ frame components and OPSB enclosures used in fire protection gear. The 3-phase design supports wide grid compatibility and reduces single-point failure risks, making it suitable for retrofits and new installations alike. Real-world benefits include measurable efficiency gains and simplified maintenance planning for building services and municipal pumps. long-tail keywords integrated include fire pump motor, 3-phase electric motor, OPSB enclosure, 405TCZ frame, NEMA B design, and 380 V/460 V operation.
Get a Quick Quote for a ABB 7BVJPFPM2559T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVJPFPM2559T-4?
Enquire Now
FAQs
Yes, this 3-phase pump motor is compatible with common VFDs used in fire pump circuits. It features a C-face drive end and a footless base for flexible mounting, with horizontal orientation and F1 mounting. The OPSB enclosure provides robust protection in challenging environments, simplifying installation in retrofit or new-build projects.
Key specs include 380 V to 460 V, 3-phase, 100 Hp output, rated current around 141 A, and speeds of 1475 r/min at 50 Hz or 1775 r/min at 60 Hz. The efficiency is about 94.50% with a 0.85 power factor, supporting reliable operation in continuous-duty fire pump applications.
Yes. The product is designed for fire pump service with NEMA design B and OPSB enclosure, suitable for continuous duty. Its frame 405TCZ and 4-pole configuration provide steady torque and dependable start/stop performance essential for emergency water supply and building fire protection systems.
The motor carries CSA EEV and CULUS listings, along with NEMA standards. These certifications support electrical safety, reliability, and compliance for US-based installations and regulated environments, reducing procurement risk and facilitating integration into compliant fire pump systems.
Lead times are minimal (0 day indicated), with stock distributed across multiple warehouses, including US facilities, enabling rapid deployment and reduced downtime. Warranty terms require product returns if applicable, providing a safeguard against early failures and reinforcing total cost of ownership reductions.
