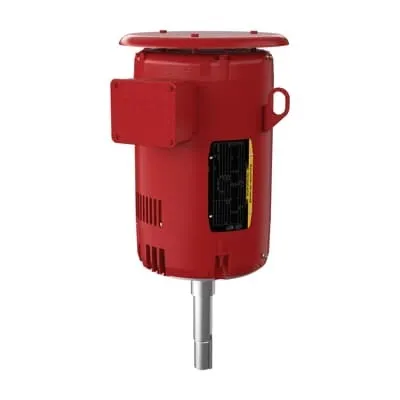

ABB 7BVJPFPM3312T Pump Motor - UL/CSA Certified
Part Number: 7BVJPFPM3312T
Quick Summary
ABB 7BVJPFPM3312T Pump Motor is a rugged 10 HP three-phase unit designed for fire pump applications in critical water systems. This motor helps engineers overcome downtime and stock-out risks by offering 0-day lead times and broad warehouse coverage. It carries CSA EEV and UL certifications, meets IE2 efficiency targets, and uses a NEMA B design for dependable performance in demanding environments. The OPSB enclosure and C-Face mounting simplify installation in compact spaces, while the 213JP frame and 1.25 in shaft diameter support robust mechanical coupling. With 50/60 Hz versatility and a direct-on-line start, this motor delivers reliable operation across North American and international projects, reducing lifecycle costs and maintenance headaches.
Product Information
Extended Description
7BVJPFPM3312T ABB: Pump Motor 10 Hp 190 V (VJPFPM3312T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10//7.5HP,3490//2900RPM,3PH,60//50H
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VJPFPM3312T
Certification Agency
CSA EEV | UL
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN800
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11) | IE2
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
VJPFPM3312T
Gross Volume
9647.168 in³
Gross Weight
121 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
10//7.5HP,3490//2900RPM,3PH,60//50HZ,213
Made To Order
No
Medium Description
Fire Pump, 10//7.5 HP, Frame Size 213Jp, C-Face Mounting, 3 Phase, OPSB Enclosure, (VJPFPM3312T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
213JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp | 7.5 Hp
Power Factor
86 %
Product Name
Fire Pump
Product Net Depth / Length
27.625 in
Product Net Height
18.75 in
Product Net Weight
121 lb
Product Net Width
18.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11 A
Rated Efficiency
88.50 %
Rated Speed
2900 r/min | 3490 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Short Description
10//7.5 HP, Frame Size 213Jp, C-Face, 3 PH, OPSB,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
190 V | 230 V | 380 V | 460 V
Direct-on-line starting reduces control hardware and startup torque spikes, enabling simple integration with existing pump controllers. This translates to lower installation costs and faster commissioning for fire pump systems. The OPSB enclosure and C-face mounting provide rugged protection and straightforward alignment in tight spaces, improving installation reliability and service access in municipal and industrial facilities. Frame 213JP with a 1.25 in shaft and 3-phase operation supports standard pump couplings and durable coupling life, while the 50/60 Hz compatibility enables global deployment without redesign. IE2 efficiency at 88.5% reduces energy consumption and cooling load, delivering measurable operating cost savings during long-duty cycles in fire pump applications. 0-day lead time and multi-warehouse stocking minimize downtime and improve project scheduling, while UL/CSA certs provide regulatory assurance for compliance. Documentation and specs align with ETIM 7 and NEMA B design, empowering procurement to compare against similar pump motors with confidence.
