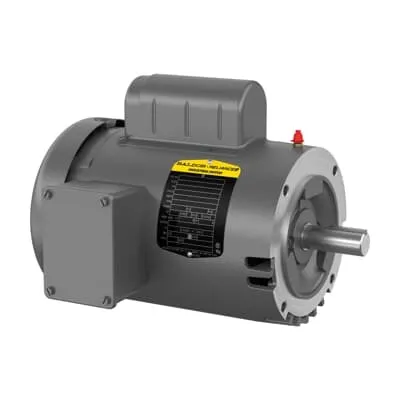

ABB 7BVL1321T General Purpose Motor - 1PH 115V, 60Hz
Part Number: 7BVL1321T
Quick Summary
General Purpose Motor 1PH Open serves as a versatile drive solution for small machinery and fans. Engineers often struggle to find a compact single‑phase motor that delivers reliable performance on 115/230 V without complex rewiring or excessive downtime. This ABB model addresses those challenges with a 1.5 HP rating, 1730 rpm, and a 145TC frame configured for easy C-face mounting in open enclosures. It also aligns with safety and regulatory expectations through CSA/UR certification and RoHS compliance, while maintaining NEMA design compatibility for seamless integration into existing control cabinets. With zero-day lead times and wide stock at multiple warehouses, you can streamline procurement and reduce project lead times while preserving long-term operability.
Product Information
Extended Description
7BVL1321T ABB: General Purpose Motor 1.5 Hp 115 V (VL1321T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1730RPM,1PH,60HZ,145TC,3536L,
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VL1321T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYDD005
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VL1321T
Gross Volume
2110.969 in³
Gross Weight
48 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
1.5HP,1730RPM,1PH,60HZ,145TC,3536L,OPEN
Made To Order
No
Medium Description
General Purpose 1PH Open, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (VL1321T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
80 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
48 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15.5 A | 7.8 A
Rated Efficiency
75.50 %
Rated Speed
1730 r/min
Replaced Product ID (OLD)
7B35DD00G406
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 1PH 115/230V, 60 Hz electrical configuration enables universal compatibility with common plant power sources, reducing wiring complexity and enabling faster installation in new or retrofit projects. This translates to lower commissioning time and predictable startup performance for small conveyors, pumps, or fans where space is at a premium. Feature → Business Impact → Application: The 145TC frame with C-face mounting and open enclosure supports straightforward alignment and cooling, facilitating quick retrofit into existing equipment and open-panel installations without enclosure modifications. Application includes open-drive systems and lightweight machinery where fast, reliable service is critical. Feature → Business Impact → Application: 1.5 HP rating at 1730 rpm with a 4-pole configuration ensures dependable continuous duty performance, improving line efficiency and reducing motor heat buildup in continuous operation environments such as packaging lines and ventilation systems. Feature → Business Impact → Application: Insulation Class F and a service factor of 1.15 provide enhanced reliability under typical industrial temperatures, minimizing downtime and extending service life in challenging plant environments. Feature → Business Impact → Application: CSA/UR certification and RoHS compliance verify regulatory and environmental standards, supporting risk mitigation and easier cross-border procurement for global facilities. Feature → Business Impact → Application: Stocked-at-warehouses with 0-day lead time reduces project delays and procurement costs, enabling just-in-time manufacturing and rapid replacement in maintenance programs. Feature → Business Impact → Application: Open, non-brake design with Direct On Line starting simplifies maintenance planning and spare-part compatibility, lowering lifecycle costs for automation and packaging lines. Feature → Business Impact → Application: Dual voltage rating (115 V / 230 V) and a 0.88 in shaft diameter support versatile coupling options and equipment integration, reducing auxiliary components and inventory complexity. This combination supports long-term cost efficiency and straightforward upgrades in industrial settings such as fans, pumps, and light conveyors.
Get a Quick Quote for a ABB 7BVL1321T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVL1321T?
Enquire Now
FAQs
Yes. The motor operates at 115/230 V with 60 Hz, featuring a 1PH configuration and a 145TC frame. Its open enclosure and C-face mounting simplify mounting in open panels, while the 0-day lead time and widespread warehouse stock support rapid deployment in standard control cabinets.
Key specs include 1.5 HP, 1730 rpm (Synchronous 1800 rpm), 115/230 V, 60 Hz, 1-phase, frame 145TC, and a shaft diameter of 0.88 in. It has a service factor of 1.15, Insulation Class F, and a 60 Min duty rating, designed for continuous operation in light industrial tasks.
Absolutely. With a continuous duty rating, 1.5 HP output, and a robust 145TC frame, the motor supports steady operation for conveyors, fans, and pumps. The C-face mounting and open enclosure simplify installation, alignment, and cooling in industrial settings, while the single‑phase design keeps wiring simple.
The 7BVL1321T carries CSA/UR certification and RoHS compliance, ensuring electrical safety and environmental compliance. NEMA design alignment further supports compatibility with common industrial controls, reducing regulatory risk during procurement and installation in North American facilities.
With zero-day lead times and multiple stock locations, procurement is fast, reducing project delays. The open, non-brake design minimizes maintenance requirements, and the motor’s long-term reliability lowers lifecycle costs while enhancing uptime in production lines and maintenance programs.
