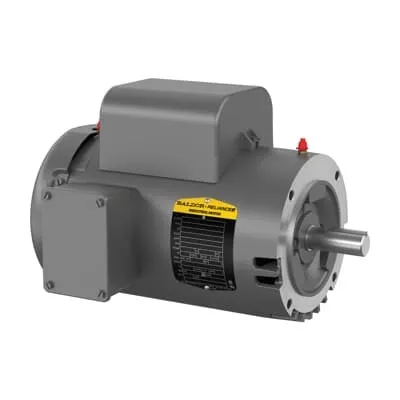

ABB VL1322T General Purpose Motor - 2HP, 1PH, CSA UR
Part Number: 7BVL1322T
Quick Summary
VL1322T general purpose motor powers compact single-phase open-frame drives across conveyors, pumps, and fans. The 2 HP, 115 V unit is designed for reliable, easy installation in standard industrial settings. A common challenge for OEMs is balancing performance with a compact footprint and straightforward maintenance. This motor delivers 1-phase, 60 Hz operation in a 145TC frame with C-face mounting, RoHS compliance, and CSA/UR certification—combining safety, efficiency, and regulatory readiness. By selecting the VL1322T, manufacturers can simplify spare-part inventories, reduce downtime, and meet NEMA design expectations without sacrificing flexibility in open enclosure configurations.
Product Information
Extended Description
7BVL1322T ABB: General Purpose Motor 2 Hp 115 V (VL1322T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1735RPM,1PH,60HZ,145TC,3538LC,O
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VL1322T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYEE018
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VL1322T
Gross Volume
3496.049 in³
Gross Weight
49 lb
Horsepower Rating UL/CSA
2.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
2HP,1735RPM,1PH,60HZ,145TC,3538LC,OPEN,F
Made To Order
No
Medium Description
General Purpose 1PH Open, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/208-230 V, 60 Hz (VL1322T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
85 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
49 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
20.4 A | 10.3 A | 10.2 A
Rated Efficiency
75.50 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35EE018G469
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 1 PH, OPEN, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 208 V | 230 V
Feature: 145TC frame with C-face mounting enables quick alignment and simple retrofits. Business Impact: Reduces installation time and errors, lowering indirect labor costs. Application: Best for compact conveyors and open-frame equipment where space is limited. Feature: 115 V 1-phase 60 Hz operation provides straightforward integration with standard plant power and motor controllers. Business Impact: Minimizes wiring complexity and compatibility concerns, accelerating project timelines. Application: Suitable for light to medium duty conveyors, fans, and pumps in production lines. Feature: Open enclosure design facilitates cooling and easy access for maintenance. Business Impact: Improves reliability in warm environments and reduces downtime during service. Application: Open-frame installations with limited enclosure space. Feature: 145TC frame, horizontal mounting, and C-face flange simplify retrofit and alignment. Business Impact: Enables rapid commissioning and repeatable performance in existing machinery. Application: Replacements and upgrades of legacy 1PH motors. Feature: RoHS compliance, insulation class F, and 1.15 service factor support reliability and regulatory compliance. Business Impact: Reduces compliance risk and supports longer life in continuous operation. Application: Industrial environments requiring durable insulation and safe operation.
