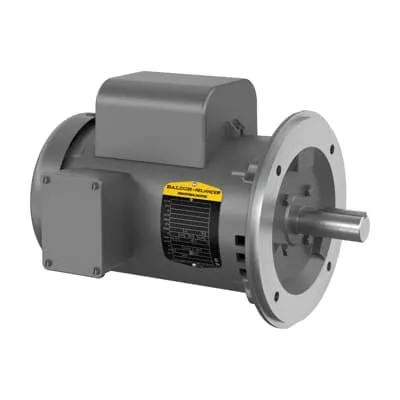

ABB VL1406T General Purpose Motor - 1PH 60Hz, ODTF
Part Number: 7BVL1406T
Quick Summary
VL1406T General Purpose Motor is a reliable 3 HP open, single-phase motor designed for general-purpose equipment in manufacturing and packaging lines. Engineers often grapple with downtime from voltage mismatches, improper enclosures, or long procurement cycles. This motor carries CSA and UR listings, RoHS compliance, and a NEMA design for broad compatibility. In addition to its 60 Hz operation and open ODTF enclosure, the 182TC frame and 1-phase configuration simplify integration with standard drivelines, belts, and gearheads. Adopting this motor can streamline sourcing, reduce spare-part variety, and improve lifecycle cost for single-phase industrial processes.
Product Information
Extended Description
7BVL1406T ABB: General Purpose Motor 3 Hp 115 V (VL1406T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,1PH,60HZ,182TC,3532LC,O
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VL1406T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYU226
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
VL1406T
Gross Volume
3496.049 in³
Gross Weight
61 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
3HP,3450RPM,1PH,60HZ,182TC,3532LC,ODTF
Made To Order
No
Medium Description
General Purpose 1PH Open, 3 HP, 3600 RPM, Frame Size 182Tc, C-Face Mounting, 1 Phase, ODTF Enclosure, 115/230 V, 60 Hz (VL1406T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
61 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27.2 A | 13.6 A
Rated Efficiency
75.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35U226Z508
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 3600 RPM, Frame Size 182Tc, C-Face, 1 PH, ODTF, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Voltage versatility and simplicity: The VL1406T is a dual-voltage 115/230 V motor engineered for 60 Hz service, reducing inventory needs and wiring complexity while maintaining reliable starting performance. This translates to easier procurement and faster integration on pumps, fans, conveyors, and general-purpose machinery. Enclosure and mounting efficiency: With an ODTF enclosure and a C-face drive end flange, installation is straightforward, enabling better protection in open factory environments and simplified maintenance access. Frame and mounting compatibility: The 182TC frame with horizontal mounting (F1) supports common drivelines and bolt patterns, reducing coupling costs and streamlining retrofit projects. Performance and reliability: 3 HP output at 3450 r/min with a 1.15 service factor and PF around 92% drives energy efficiency and consistent speeds in continuous-duty applications. Compliance and support: RoHS compliance, CSA/UR listings, and NEMA design alignment help meet regulatory requirements and reduce risk in regulated industries while stock availability (0 day lead time) supports rapid deployment. Industry context: This motor is well-suited for single-phase industrial lines, including packaging and material handling, where predictable performance and easy maintenance are critical for uptime and total cost of ownership.
Get a Quick Quote for a ABB 7BVL1406T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVL1406T?
Enquire Now
FAQs
Yes. The VL1406T is a dual-voltage, single-phase motor rated for 115 V or 230 V operation at 60 Hz. This compatibility reduces stocking complexity and simplifies wiring during installation.
It uses a C-Face drive end flange with horizontal mounting (F1) and an open, drip-permitting ODTF enclosure. This combination supports easy installation, ventilation, and straightforward maintenance on standard drivelines.
The VL1406T carries CSA and UR listings and RoHS compliance, with a NEMA design designation. These certifications ensure electrical safety, regulatory compliance, and reduced hazardous substances for regulated industrial environments.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses (including US and China), enabling rapid fulfillment and minimized project delays.
With 3 HP output, 3450 r/min, service factor 1.15, and a 92% power factor, the VL1406T delivers efficient, reliable operation for continuous-duty loads. Direct-on-line starting and modest maintenance requirements help reduce downtime and operating costs.
