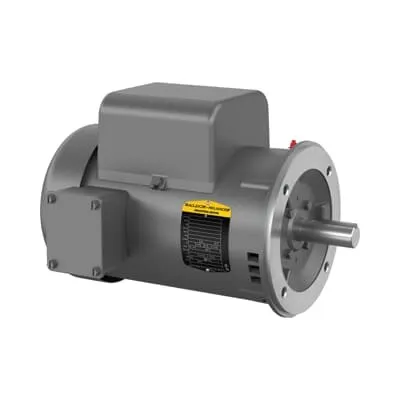

ABB VL1408T General Purpose Motor - 3HP, 1PH, CSA/UR
Part Number: 7BVL1408T
Quick Summary
General purpose motor is the ABB VL1408T delivering 3 HP of reliable single‑phase power for open-frame equipment in light industrial settings. This model helps OEMs minimize downtime by offering quick replacement with a familiar 184TC frame and C-face mounting. The device carries CSA/UR certification and adheres to NEMA design standards, simplifying compliance and spare-parts planning. With dual voltage 115/230 V and a 60 Hz profile, it fits a wide range of applications from pumps to conveyors, reducing wiring complexity and stock variety. Businesses benefit from predictable performance, solid availability, and straightforward installation that supports faster time-to-value for capital projects and maintenance programs.
Product Information
Extended Description
7BVL1408T ABB: General Purpose Motor 3 Hp 115 V (VL1408T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1725RPM,1PH,60HZ,184TC,3634LC,O
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VL1408T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYE001
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
VL1408T
Gross Volume
5274.135 in³
Gross Weight
78 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
3HP,1725RPM,1PH,60HZ,184TC,3634LC,OPEN
Made To Order
No
Medium Description
General Purpose 1PH Open, 3 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 1 Phase, ODTF Enclosure, 115/230 V, 60 Hz (VL1408T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
78 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
78 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
32 A | 16 A
Rated Efficiency
78 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 184Tc, C-Face, 1 PH, ODTF, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: Dual voltage 115/230 V and 60 Hz operation. Business impact: Flexible power sourcing and simplified stocking reduce installation downtime and inventory costs for diverse plant layouts. Application: Pumps, fans, and light conveyors in mixed-voltage facilities benefit from plug‑and‑play compatibility. Feature: 184TC frame with C-face mounting and horizontal orientation. Business impact: Standardized footprint accelerates replacement and interchangeability, lowering mounting rework and bolting time. Application: OEM equipment retrofits and new line builds with common frame patterns gain faster commissioning. Feature: Open Drip Tight Enclosure (ODTF) and 1‑phase direct‑on‑line starting. Business impact: Robust protection with easy wiring and simple control logic, reducing electrical engineering overhead and startup risk. Application: Open drives, air handling units, and process equipment in general purpose systems. Feature: Insulation Class F and bearing set (6206/6205). Business impact: Higher thermal tolerance and reliable lifecycle under continuous duty, cutting maintenance costs and unplanned downtime. Application: Motors in hot or dusty environments, long shifts, or compact enclosures. Feature: NEMA Design Code L, shaft 1.13 in, and 1725 r/min nominal speed (synchronous 1800 r/min). Business impact: Predictable torque for belt drives and pulley systems, enabling precise speed matching and energy efficiency. Application: Conveyor drives, process fans, and pump assemblies requiring consistent performance. Feature: 3 HP, 1PH, 60 Hz, 115/230 V with 78% rated efficiency and 1.15 service factor. Business impact: Improved energy performance and margin for short-term overloads, supporting cost-effective operation and reduced utility impact. Application: General purpose motor applications across light to medium industrial automation stacks.
Get a Quick Quote for a ABB 7BVL1408T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVL1408T?
Enquire Now
FAQs
Yes. The VL1408T is a dual-voltage motor rated for 115 V or 230 V at 60 Hz, designed for single-phase operation and direct-on-line starting, which simplifies wiring and reduces the need for multiple SKU variants.
The motor carries CSA/UR certification and conforms to NEMA design standards. This combination supports regulatory compliance, safe operation, and easier procurement and maintenance across North American facilities.
The VL1408T uses an ODTF enclosure with C-face mounting and a horizontal orientation. It also features a 184TC frame and a footless base, enabling straightforward installation and compatibility with a wide range of OEM equipment.
Key specs include 3 HP output, 1 phase, 60 Hz, rated current of 32 A (or 16 A depending on voltage), efficiency around 78%, and a rated speed of 1725 r/min. These values support proper drive sizing and energy efficiency in light-industrial applications.
With a robust 1.15 service factor, durable bearings, and Class F insulation, the VL1408T offers reliable long-term operation and reduced maintenance intervals. The standard frame, mounting, and dual-voltage options also lower spare-parts complexity and stock levels, improving total cost of ownership.
