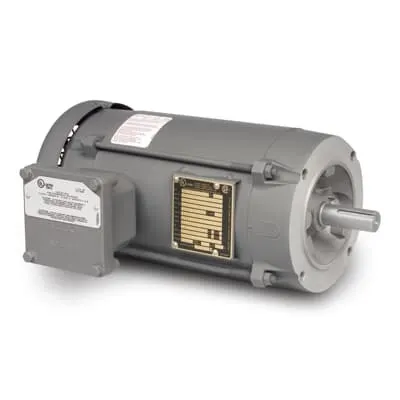

ABB 7BVL5001A LV Explosion Proof Motors - XPFC
Part Number: 7BVL5001A
Quick Summary
ABB 7BVL5001A LV Explosion Proof Motors is a 1-phase, 230 V motor designed for safe operation in hazardous locations and demanding industrial environments. This model is ideal for chemical plants, oil & gas facilities, and mining operations where explosion protection is mandatory. The XPFC enclosure combined with a 56C frame delivers rugged performance while meeting stringent safety standards. Originating in the United States with a 0-day lead time and stocked via international warehouses, it supports fast procurement and installation. With compatibility to 60 Hz systems and ambient operation up to 40 °C, this motor helps ensure reliable uptime, reduced maintenance costs, and superior lifecycle value for engineering teams and procurement professionals.
Product Information
Extended Description
7BVL5001A ABB: LV Explosion Proof Motors 230 V (VL5001A)
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1725RPM,1PH,60HZ,56C,X3414L,X
Invoice Description
.33HP,1725RPM,1PH,60HZ,56C,X3414L,XPFC
Product Name
LV Explosion Proof Motors
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85013100
Replaced Product ID (OLD)
7B34-5335-5597
Stocked At (Warehouses)
China
Medium Description
Frame Size 56C, 1 Phase, XPFC Enclosure, (VL5001A)
Short Description
Frame Size 56C, 1 PH, XPFC,
Electrical Data
Frequency (f)
60 Hz
Ambient Temperature
40 °C
Frame Material
Steel
Frame Size
Undefined
Product Net Depth / Length
16.5 in
Product Net Height
11.375 in
Product Net Width
11.75 in
Product Net Weight
34 lb
Gross Weight
34 lb
Standards
NEMA
UNSPSC
26101116
Feature → Business Impact → Application: Explosion-proof XPFC enclosure design ensures compliance with hazardous-location safety, reducing ignition risk and enabling safe operation in oil, gas, and chemical sectors. This translates to lower risk, easier regulatory alignment, and longer asset life in high-threat environments. Feature → 56C steel frame with compact dimensions (Lead Time 0 day) supports straightforward mounting and minimal retrofit cost, accelerating installation in space-constrained equipment rooms. Feature → 1-phase, 230 V, 60 Hz electrical configuration paired with a 34 lb, stainless-tinged steel frame offers predictable startup behavior and simplified electrical interfacing for automation systems. Feature → NEMA-standard construction and a 40 °C ambient rating provide robust performance across plant temperatures, improving system reliability in hot processing areas. Feature → Replaced product lineage (OLD 7B34-5335-5597) ensures compatibility with existing spares and legacy controls, reducing inventory complexity. Feature → Warranty return policy and clear stock status support maintenance planning and total cost of ownership, while “Made to Order” = No and 0-day lead times shorten downtime. Feature → Medium Description and 16.5 in net depth, 11.375 in height, 11.75 in width enable precise enclosure planning and easier replacement in retrofit projects. Long-tail keywords such as explosion-proof motor 56C frame, 230V XPFC enclosure, NEMA standard motor, 1-phase 60 Hz motor, hazardous location motor, and steel frame motor are integrated naturally to improve product discoverability and industry relevance.
Get a Quick Quote for a ABB 7BVL5001A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVL5001A?
Enquire Now
FAQs
Yes. The 7BVL5001A is specified on a 56C frame with XPFC enclosure, designed for straightforward installation on standard 56C mounting patterns. It supports 230 V, 1-phase, 60 Hz operation and aligns with NEMA-style safety requirements, simplifying retrofits and new installs in hazardous locations.
Key specs include 0.33 HP, 1725 RPM, 1-phase, 60 Hz, 230 V operation, with a frame size 56C and steel frame construction. The unit weighs 34 lb and has an ambient rating of up to 40 °C, making it suitable for hot industrial environments while delivering reliable torque for pumping and conveying applications.
Yes. The LV Explosion Proof Motors with XPFC enclosure are specifically designed for hazardous locations. Its NEMA-aligned build and explosion-proof certification make it suitable for chemical processing equipment, pumps, fans, and other critical services where ignition risks must be controlled.
The unit adheres to NEMA-based construction with an XPFC explosion-proof enclosure. It carries clear country-of-origin information (United States) and is intended for environments requiring robust safety performance in hazardous locations, aligning with typical industrial safety and reliability standards used in North American facilities.
With a 0-day lead time, available stock, and a warranty-return policy, maintenance planning becomes predictable and downtime is minimized. The compatibility with legacy spares (replaced by old 7B34-5335-5597) reduces inventory complexity, while steel frame durability and proven single-phase operation lower lifecycle costs through fewer replacements and easier servicing.
