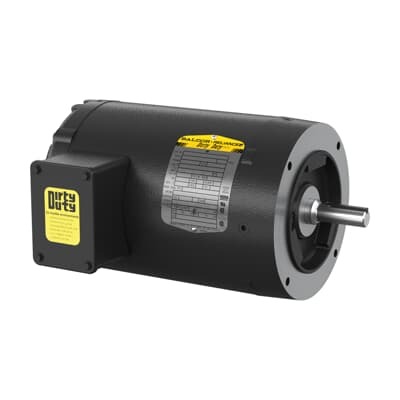

ABB 7BVNDM3538 Severe Duty Motor - 0.5 HP, 60 Hz, CSA/UR
Part Number: 7BVNDM3538
Quick Summary
Severe Duty Motor 7BVNDM3538 delivers reliable torque for rugged industrial drives like conveyors and mixers. In harsh environments, downtime and overheating threaten throughput, so robust protection and predictable performance are essential. This motor carries CSA US, CSA EEV, and UR certifications, aligning with NEMA standards to support safe, compliant installations. With a 56C frame, 3-phase 60 Hz operation, and a Totally Enclosed Non-Ventilated (TENV) enclosure, it offers durable service in dirty, demanding applications while maintaining energy-efficient operation. Designed for easy integration, it helps minimize maintenance costs and maximize uptime across manufacturing lines and packaging systems.
Product Information
Extended Description
7BVNDM3538 ABB: Severe Duty Motor 0.5 Hp 230 V (VNDM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1775RPM,3PH,60HZ,56C,3514M,TEN
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VNDM3538
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE4329: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VNDM3538
Gross Volume
2110.969 in³
Gross Weight
35 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.5HP,1775RPM,3PH,60HZ,56C,3514M,TENV,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VNDM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
35 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.8 A | 0.9 A
Rated Efficiency
78.20 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B35E4329G069G2
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 0.5 HP, 3-phase motor configured for 60 Hz operation delivers ample torque for mid-range conveyors, mixers, and material-handling equipment, reducing cycle times and improving line throughput. This translates to measurable productivity gains and lower per-unit energy costs when deployed in continuous-duty processes. Feature → Business Impact → Application: The 56C frame with C-Face mounting and horizontal orientation simplifies retrofits and new installations, enabling fast integration with existing baserails and standard mounting patterns. This reduces installation costs and downtime during commissioning in packaging lines and processing workflows. Feature → Business Impact → Application: The Totally Enclosed Non-Ventilated (TENV) enclosure protects against dust and contaminants in dirty-duty autophoretic environments, lowering maintenance demands and extending bearing life on harsh production lines. Feature → Business Impact → Application: Insulation Class F, sealed bearings (6205), and a 40 °C ambient rating bolster long-term reliability in temperature-variable plants, helping facilities meet uptime targets and reduce spare-part inventories. Feature → Business Impact → Application: Efficiency at 78.20% and a service factor of 1.15 support energy-conscious operation and torque protection during startup, aiding compliance with energy-performance directives while delivering consistent performance on 3-phase, 230/460 V systems. Feature → Business Impact → Application: Ready-to-ship stock from multiple warehouses with 0-day lead time ensures rapid deployment for urgent projects, minimizing project delays and accelerating ROI in mid-size industrial installations. Long-tail keywords integrated here include 0.5 HP 3-phase motor, 56C frame motor, C-Face mounting, TENV enclosure, 230/460 V, 60 Hz, and continuous-duty motor to reflect real-world search intents.
