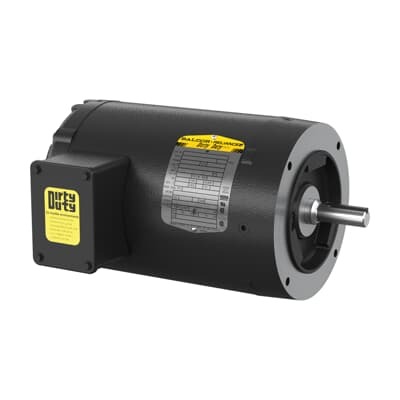

ABB 7BVNDM3542 Severe Duty Motor - 3PH 60Hz TENV
Part Number: 7BVNDM3542
Quick Summary
ABB 7BVNDM3542 Severe Duty Motor is a 0.75 HP, 1765 RPM, 3-phase motor built for harsh industrial environments. It tackles downtime and maintenance challenges in conveyors, pumps, and fans by combining rugged steel construction with a robust enclosure. The design carries regulatory credibility with CSA US, CSA EEV, and UR certifications, while adhering to NEMA design B and 56C frame specifications. With 0-day lead time and stock at multiple warehouses, it supports fast procurement for 230/460 V systems and high-availability operations, delivering improved plant productivity and faster ROI.
Product Information
Extended Description
7BVNDM3542 ABB: Severe Duty Motor 0.75 Hp 230 V (VNDM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1765RPM,3PH,60HZ,56C,3514M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VNDM3542
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE4329: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VNDM3542
Gross Volume
2110.969 inÂł
Gross Weight
37 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,1765RPM,3PH,60HZ,56C,3514M,TENV,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VNDM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
37 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.28 A | 1.14 A
Rated Efficiency
82.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 0.75 HP output paired with a 1765 r/min nominal speed provides a compact yet capable drive for many medium-duty applications, enabling energy-efficient operation and consistent torque delivery across 60 Hz systems. This translates to measurable efficiency gains and reduced wear on gear trains in conveyors and pumps when running at a constant speed. Application-wise, its 56C frame and C-face mounting simplify retrofits and new installs in tight spaces, such as skid-mounted pump packages or compact conveyor modules. Feature → Business Impact → Application: The TENV enclosure and steel frame improve durability in dirty-duty environments, reducing maintenance intervals and guarding against dust ingress in autophoretic or wash-down areas. This suits fans, mixers, and HVAC components in manufacturing lines where environmental exposure is routine. Feature → Business Impact → Application: 3-phase, 230/460 V operation along with a service factor of 1.15 provides headroom for startup loads and short-term overloads, supporting direct-on-line or soft-start integration with standard drives. This minimizes downtime during peak startup or load transitions in material handling and packaging lines. Feature → Business Impact → Application: The 0-day lead time and multi-warehouse stocking enable rapid deployment, allowing engineering teams to meet tight production schedules and minimize downtime when swapping in a like-for-like motor in existing equipment such as sumps, mixers, or small centrifuges. Feature → Business Impact → Application: Certifications (CSA US, CSA EEV, UR) deliver regulatory assurance for industrial facilities, helping with compliance audits and warranty coverage while supporting global procurement programs for multi-site operations.
