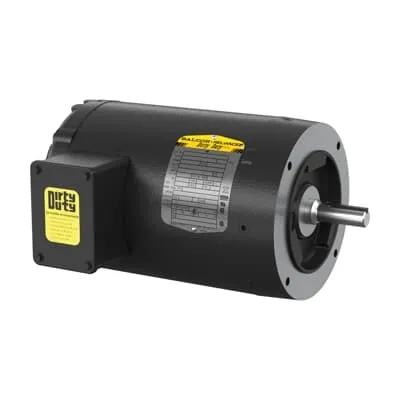

ABB 7BVNEDM3546 Motor - 1 HP, 60 Hz, 230/460 V, TENV
Part Number: 7BVNEDM3546
Quick Summary
The ABB 7BVNEDM3546 motor is a severe-duty, 1 HP three-phase AC motor designed for demanding industrial drives. It delivers reliable performance in dirty-duty environments with robust bearings and a sealed enclosure. The motor meets critical standards such as NEMA Premium Efficiency, CSA EEV, and UR recognition for energy compliance and safety. Its 56C frame with C-face mounting facilitates quick integration with a wide range of gearboxes and couplings. With 230/460 V operation at 60 Hz, this motor provides global plant flexibility, streamlined spare parts management, and reduced lifecycle costs.
Product Information
Extended Description
7BVNEDM3546 ABB: Severe Duty Motor 1 Hp 230 V (VNEDM3546)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,56C,3522M,TENV
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VNEDM3546
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE4329: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VNEDM3546
Gross Volume
2110.969 inÂł
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,56C,3522M,TENV,F1,N
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VNEDM3546)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
41 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: 1 HP, 4-pole, 3-phase motor with a 56C frame. Benefit: Delivers precise torque and reliable speed for general purpose automation, improving conveyor and mixer performance in harsh environments. Application: 56C frame, 3-phase drives, common in legacy lines and new equipment integrations. Feature: TENV enclosure and insulation class F. Benefit: Superior heat management and resistance to ambient temperatures up to 40 °C, reducing overheating risk in dusty plants. Application: Dusty production floors and washing-down environments where enclosure integrity matters. Feature: 230/460 V, 60 Hz operation with direct-on-line starting. Benefit: Flexible power sourcing and simplified start-up, cutting control panel complexity and installation time. Application: Global plants using mixed voltage supplies. Feature: 56C frame with C-face drive end flange and horizontal mounting. Benefit: Easy retrofit and fast installation with universal mounting options. Application: Replacement motors and new builds in belt-driven systems. Feature: Premium efficiency (NEMA) and service factor 1.15. Benefit: Lower energy costs and extended motor life under peak loads. Application: Continuous duty applications like conveyors and processing lines. Feature: Sealed bearing (6205) and NDE bearing (6203). Benefit: Reduced maintenance and longer service intervals. Application: Harsh environments where lubrication intervals are critical.
