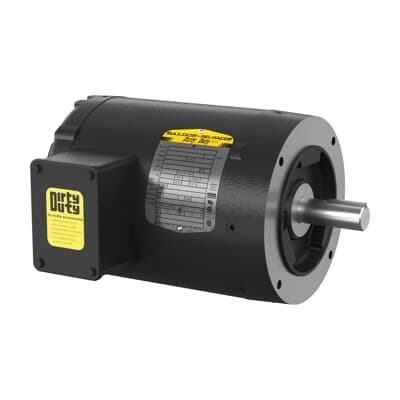

ABB VNEDM3546T Severe Duty Motor - NEMA Premium
Part Number: 7BVNEDM3546T
Quick Summary
ABB VNEDM3546T Severe Duty Motor is a 1 HP, 230/460 V three‑phase motor designed for demanding industrial environments and continuous duty applications. This drive-ready solution addresses the common challenge of downtime in dirty, harsh, or autophoretic service by delivering consistent torque and reliable operation. With NEMA Premium efficiency, CSA US, and UR certifications, the motor meets stringent energy and safety standards while maintaining strong performance across varying loads. The design aligns with 143TC frame compatibility and C‑Face mounting to simplify integration with existing drives and gear systems, boosting overall plant productivity. From maintenance planning to procurement, this motor provides a clear path to improved uptime and lower life‑cycle costs.
Product Information
Extended Description
7BVNEDM3546T ABB: Severe Duty Motor 1 Hp 230 V (VNEDM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143TC,3522M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VNEDM3546T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE4321: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
VNEDM3546T
Gross Volume
2110.969 in³
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,143TC,3522M,TENV,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VNEDM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
41 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium efficiency (NEMA Premium) reduces energy consumption over the motor’s life, lowering operating costs and heat generation in continuous duty lines such as conveyors and mixers. This translates to measurable energy savings and cooler plant operation, improving reliability in hot, dirty environments. Application: general purpose automation and material handling in manufacturing facilities. Feature → Business Impact → Application: 60 Hz compatibility with 230/460 V three‑phase power ensures easy integration with common plant electrical infrastructure, reducing installation complexity and spare part fragmentation. Application: retrofits and new line builds requiring standard industrial voltage. Feature → Business Impact → Application: TENV enclosure, 143TC frame, and C‑Face mounting provide robust protection and straightforward installation, enabling quick motor swapouts and minimal downtime in harsh environments. Application: heavy-duty fans, pumps, and mixers in process plants. Feature → Business Impact → Application: 6205 sealed bearings and a 0.88 in shaft diameter support long service life with reduced maintenance, lowering total cost of ownership for continuous operation equipment. Application: conveyors and material handling systems. Feature → Business Impact → Application: Direct‑on‑line starting simplifies electrical design and reduces soft‑start hardware needs, enabling faster commissioning and reduced upfront costs. Application: door openers, grinders, and other high‑inertia loads. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time minimizes downtime and production stoppages, supporting just‑in‑time manufacturing and rapid project deployment. Application: plants with high‑changeover demands and international supply chains. The combination of 1 HP rating, 1770 r/min nominal speed, and 4‑pole, 3‑phase configuration makes this motor a versatile choice for continuous duty applications in dirty duty autophoretic environments, while maintaining compatibility with existing 143TC frames and F1 mounting for streamlined retrofits.
