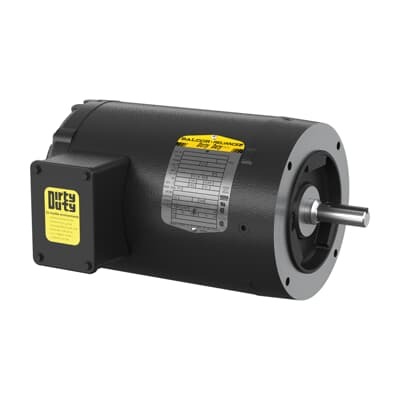

ABB 7BVNEDM3554 LV Severe Duty Motor - C-Face, 3PH UR
Part Number: 7BVNEDM3554
Quick Summary
ABB 7BVNEDM3554 LV Severe Duty Motor delivers reliable 1.50 HP performance for demanding industrial drives such as conveyors and mixers. The 230 V three-phase design is engineered to endure harsh shop-floor conditions while delivering consistent torque and uptime. This motor aligns with key safety and efficiency standards to help reduce downtime and energy waste. With certifications including CCSA US, CSA EEV, and UR, it supports cross‑border compliance. When standardization across a facility is needed, this motor provides a robust, versatile solution that fits 56C frame size, C-Face mounting, and horizontal installation with predictable service life.
Product Information
Extended Description
7BVNEDM3554 ABB: Severe Duty Motor 1.50 Hp 230 V (VNEDM3554)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1755RPM,3PH,60HZ,56C,3534M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VNEDM3554
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4329: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
VNEDM3554
Gross Volume
3496.049 in³
Gross Weight
48 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1755RPM,3PH,60HZ,56C,3534M,TENV,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, (VNEDM3554)
Minimum Order Quantity
1 piece
Motor Base Type
No Mounting
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
76 %
Product Name
LV Severe Duty Motors
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
48 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.2 A | 2.1 A
Rated Efficiency
86.50 %
Rated Speed
1755 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
Frame Size 56C, C-Face, 3 PH, TENV,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 1.50 HP, 3‑phase design at 1755 r/min delivers ample torque for medium‑duty drives, reducing process fluctuations and enabling steadier operation on line conveyors and mixers. This translates to higher throughput and lower waste in continuous production environments. Feature → Business Impact → Application: Premium Efficiency (NEMA 12‑12) reduces energy consumption in daily operation, lowering operating costs for large-scale factories and packaging lines. Feature → Business Impact → Application: TENV enclosure and 40 °C ambient tolerance minimize motor overheating and unplanned maintenance, improving uptime in harsh workshop conditions and dusty environments. Feature → Business Impact → Application: Direct On Line starting and a 4P/3‑phase setup simplify drive integration, reducing commissioning time and spare‑part requirements in retrofit projects. Feature → Business Impact → Application: Sealed bearings (6205) and a 0.63 in shaft diameter extend service intervals, lowering lubrication costs and downtime for bottling lines and material handling systems. Feature → Business Impact → Application: C‑Face mounting and Horizontal orientation support quick, trouble‑free installation and standardization across multiple line setups, improving procurement consistency and technician training.
