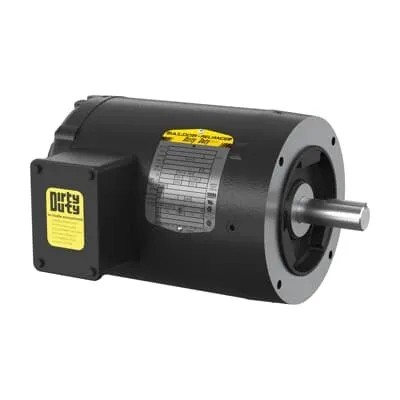

ABB VNEDM3554T Severe Duty Motor - NEMA Premium
Part Number: 7BVNEDM3554T
Quick Summary
Severe Duty Motor VNEDM3554T delivers robust 1.5 HP performance for demanding industrial applications such as material handling and conveyors. Engineers often face vibration, downtime, and harsh environments; this motor is engineered for dirty-duty autophoretic service in 40 °C ambient conditions. Backed by NEMA Premium Efficiency, CSA EEV, and UR certifications, it meets stringent U.S. and international standards while offering reliable operation in continuous duty scenarios. With 3-phase, 60 Hz operation, dual voltage 230/460 V, and a 145TC frame, it delivers broad compatibility and predictable maintenance cycles, enabling OEMs to reduce spare-part inventories and optimize total cost of ownership. The result is improved uptime, energy savings, and a smoother path to scalable automation in manufacturing environments.
Product Information
Extended Description
7BVNEDM3554T ABB: Severe Duty Motor 1.50 Hp 230 V (VNEDM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VNEDM3554T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4321: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VNEDM3554T
Gross Volume
3496.049 in³
Gross Weight
49 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,TENV
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VNEDM3554T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
72 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
49 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Severe-duty autophoretic construction with a 1.50 HP rating and 60 Hz operation. Business Impact: Delivers higher starting torque and reliable performance in demanding lines, reducing nuisance trips and unplanned downtime. Application: Suitable for dirty-duty conveyors and material-handling equipment in manufacturing cells. Feature: Premium efficiency and optimized load characteristics (NEMA Premium). Business Impact: Lowers energy consumption and operating costs over the motor’s lifecycle, improving total cost of ownership. Application: Continuous-processing lines and HVAC-driven systems where electricity costs matter. Feature: TENV enclosure, steel frame, and 145TC footprint. Business Impact: Enhanced enclosure protection against dust and splashes, extended bearing life, and easier maintenance in dirty environments. Application: Food & beverage packaging, chemical processing, and bulk-material handling. Feature: Dual-voltage capability (230/460 V) and 3-phase, direct-on-line start. Business Impact: Flexible integration with existing switchgear and VFDs, reducing installation complexity and downtime. Application: Multi-voltage automation lines and retrofit projects. Feature: Sealed bearings (6205) and 40 °C ambient rating with a service factor of 1.15. Business Impact: Improved reliability and longer maintenance intervals, lowering total cost of ownership. Application: High-ambient-temperature plants and continuous-duty operations. Feature: Certifications and compliance (NEMA Premium, CSA EEV, UR). Business Impact: Regulatory alignment supports global export and quality assurance programs, reducing risk in supplier qualification. Application: OEMs serving North American and international markets; cross-border projects with strict standards. Feature: Stocked at multiple warehouses and readily available. Business Impact: Faster delivery, reduced lead times, and better spare-part availability. Application: Just-in-time manufacturing environments and procurement planning for factories.
