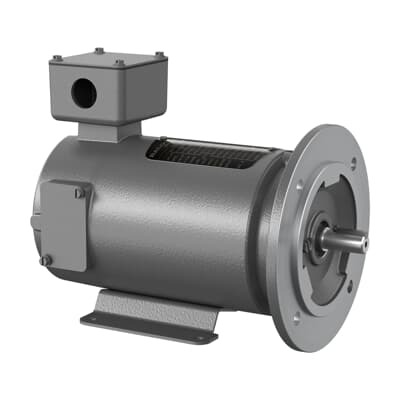

ABB 7BVP3316D DC PM IEC Flange Motor - CE/CSA/UR
Part Number: 7BVP3316D
Quick Summary
ABB 7BVP3316D is a DC PM IEC Flange motor for compact automation drives in conveyors, packaging lines, and small machinery. This motor delivers reliable, high-torque performance in tight spaces where footprint and serviceability matter. Engineers often struggle with supply chain variability, long lead times, and inconsistent stock for critical replacements. The VP3316D family supports multiple warehouses and zero-day lead times, ensuring rapid availability across global operations. Certifications including CE, CSA, UR, and WEEE bolster regulatory compliance for international deployments. With 0.33 HP output, 1750 r/min base speed, and a TENV enclosure, this motor combines efficient operation with straightforward installation to reduce total cost of ownership on manufacturing floors.
Product Information
Extended Description
7BVP3316D ABB: DC PM IEC Flange 0.33 Hp (VP3316D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.25/.33HP,1750RPM,DC,D71D,3327P,TEN
Ambient Temperature
40 °C
Armature Current
1.6 A
Armature Inertia
6.32 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3316D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
33LY2370: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Frame Material
Steel
Frame Size
71
Global Commercial Alias
VP3316D
Gross Volume
2200.078 in³
Gross Weight
26 lb
Horsepower Rating UL/CSA
0.330 Hp
Insulation Class
F
Invoice Description
.25/.33HP,1750RPM,DC,D71D,3327P,TENV,F2
Made To Order
No
Medium Description
DC PM IEC Flange, .25/.33 HP, Frame Size D71D, 0 Phase, TENV Enclosure, (VP3316D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D71D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.33 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
26 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B33-2370Z131 | 7B33-2085Z131G1
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.55 in
Short Description
.25/.33 HP, Frame Size D71D, 0 PH, TENV,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | Singapore, Singapore | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: DC PM IEC Flange architecture delivers 0.33 HP at 1750 r/min. Business Impact: High efficiency with simplified DC control reduces energy use and maintenance needs. Application: Ideal for compact conveyors and small packaging lines where space is at a premium. Feature: IEC flange mounting with frame size D71D and foot-mounted base. Business Impact: Easy retrofit into existing machines and predictable alignment reduces installation time. Application: Replacement motors in retrofits and new line builds in food, packaging, and material handling. Feature: Totally Enclosed, Non-Ventilated (TENV) enclosure. Business Impact: Robust protection against dust and debris, lowering maintenance and downtime in harsh factory environments. Application: Steel-structured frames suit general manufacturing environments and assembly lines. Feature: Stocked at multiple warehouses with 0-day lead time. Business Impact: Minimizes downtime and accelerates project timelines, improving maintenance response. Application: Urgent spares for Alabama, China, Singapore, and Europe-based operations. Feature: Comprehensive certifications CE, CSA, UR, WEEE. Business Impact: Regulatory compliance across global markets reduces risk in cross-border installations. Application: Suitable for international deployments in automotive, packaging, and logistics automation.
Get a Quick Quote for a ABB 7BVP3316D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3316D?
Enquire Now
FAQs
The motor uses IEC flange mounting with frame size D71D and a foot-mounted base, with a standard drive end flange for horizontal installation. This configuration supports easy retrofit into existing packaging and conveying equipment.
Yes. The motor carries CE, CSA, UR certifications and WEEE compliance, enabling global deployment. It also features a 40 °C ambient temperature rating and a TENV enclosure for reliable operation in typical manufacturing environments.
Key specs include 180 V armature voltage, 0.33 HP rated output, and a base speed of 1750 r/min. It uses a 0-phase DC PM configuration with a 1.00 service factor, suitable for compact drive applications.
Stocked at multiple warehouses (US, Europe, Asia) with 0-day lead times, facilitating rapid replacements and project ramp-up. Its IEC flange, frame D71D, and Baldor-Reliance lineage support broad compatibility with common VFDs and control systems.
Warranty returns are subject to the standard policy: products under warranty must be returned. This supports reliable after-sales service and protects against early-life defects in critical automation equipment.
