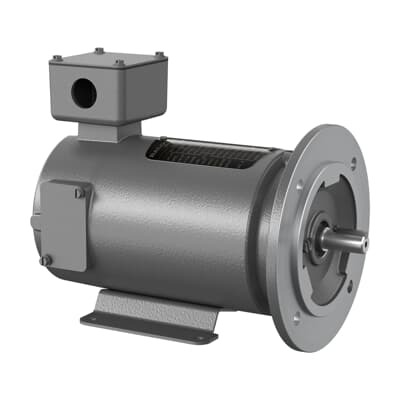

ABB 7BVP3326D DC PM IEC Flange - 0.5 HP, CE/CSA/UR
Part Number: 7BVP3326D
Quick Summary
ABB 7BVP3326D is a DC PM IEC Flange motor for reliable drives in conveyors and packaging lines. Many engineers struggle with space constraints, downtime, and long lead times for custom motors. This model carries CE, CSA, UR certifications and WEEE compliance, ensuring global acceptance and safe operation. With a 0.5 HP rating, IEC flange design, and a TENV enclosure, it delivers energy efficiency, predictable performance, and lower total cost of ownership in automation systems. Its compact footprint and 1750 rpm base speed align with standard gearboxes and mounting configurations, while global stocking supports just-in-time procurement for maintenance teams.
Product Information
Extended Description
7BVP3326D ABB: DC PM IEC Flange 0.5 Hp (VP3326D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.37/.5HP,1750RPM,DC,D71D,3336P,TENV
Ambient Temperature
40 °C
Armature Current
2.5 A
Armature Inertia
8.42 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3326D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
33LY2370: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Frame Material
Steel
Frame Size
71
Global Commercial Alias
VP3326D
Gross Volume
2200.078 in³
Gross Weight
14.061 kg
Horsepower Rating UL/CSA
0.500 Hp
Insulation Class
F
Invoice Description
.37/.5HP,1750RPM,DC,D71D,3336P,TENV,F2
Made To Order
No
Medium Description
DC PM IEC Flange, .37/.5 HP, Frame Size D71D, 0 Phase, TENV Enclosure, (VP3326D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D71D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
14.061 kg
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.55 in
Short Description
.37/.5 HP, Frame Size D71D, 0 PH, TENV,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | Singapore, Singapore | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The DC PM motor design delivers high efficiency and smooth torque at 0.5 HP, reducing energy consumption and thermal load in continuous operation. This translates to lower energy costs and longer life for conveyors and packaging lines where duty cycles are steady and predictable. Application: suitable for compact drive trains and tight mounting envelopes where standard IEC flange motors are preferred. Feature → Business Impact → Application: IEC Flange with D71D frame and horizontal foot mounting simplifies retrofits, enabling quick installation and reduced downtime. Application: ideal for replacement motors in existing automation lines without major mechanical changes. Feature → Business Impact → Application: TENV enclosure and Insulation Class F provide robust protection in 40 °C ambient environments, enhancing reliability and minimizing maintenance cycles. Application: suitable for warm manufacturing floors and enclosed spaces. Feature → Business Impact → Application: 180 V armature voltage and 2.5 A current enable direct DC drive compatibility with standard power supplies, reducing inverter or controller complexity. Application: supports straightforward integration in automated sorting and packaging systems. Feature → Business Impact → Application: Frame Size D71D, 1750 r/min base speed, 0 Phases, and 6203 sealed bearings offer low maintenance and predictable performance, boosting Overall Equipment Effectiveness (OEE). Application: long-running batch processes and continuous motion systems. Feature → Business Impact → Application: Global stock at multiple warehouses (US, SG, DE, AL, etc.) shortens procurement lead times, improving maintenance planning and minimizing downtime. Application: multinational facilities and just-in-time replacement programs.
Get a Quick Quote for a ABB 7BVP3326D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3326D?
Enquire Now
FAQs
Yes. The 7BVP3326D uses a D71D frame with foot-mounted, horizontal mounting suitable for IEC flange installations. Its 0 Phases configuration aligns with simple DC drive integration, and its dimensions and shaft diameter are designed to fit common gearbox interfaces and mounting patterns without major rework.
Key specs include an Armature Voltage of 180 V, Armature Current of 2.5 A, and a Rated/Base Speed of 1,750 r/min. The motor provides 0.5 HP output with a D71D frame size, enabling stable performance in continuous operation within standard industrial DC drive architectures.
Absolutely. With a 40 °C ambient rating, a TENV enclosure, and an insulation class of F, the motor is well-suited for conveyors and packaging lines where cleanliness and reliability are essential. The compact IEC flange design facilitates tight spaces and rapid deployment in automated material handling.
The VP3326D carries CE, CSA, UR, and WEEE certifications, ensuring global regulatory compliance and safe operation across multinational plants. This reduces the burden of supplier qualification, supports international procurement, and helps meet safety and environmental requirements in diverse jurisdictions.
Maintenance benefits include sealed bearings (6203) and a robust frame (D71D) that minimize lubrication intervals and downtime. With 0-day lead times reported for stock at multiple warehouses, procurement and replacement can be streamlined, improving maintenance planning, uptime, and total cost of ownership.
