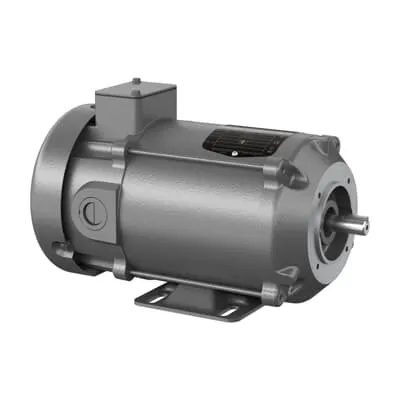

ABB 7BVP3411-14 DC PM IEC Flange - CE/CSA/UR
Part Number: 7BVP3411-14
Quick Summary
ABB 7BVP3411-14 DC PM IEC Flange motor delivers reliable DC drive for compact IEC flange applications in automation and conveyors. Many facilities face downtime due to long lead times and mismatched motors, complicating maintenance and spare parts planning. This model carries CE, CSA, UR, and WEEE certifications, reinforcing safety, compliance, and end-of-life recycling while addressing global procurement needs. With a US origin and ready-to-ship stock across multiple warehouses, it supports quick replacements and consistent performance. The solution blends a compact D71C frame, TEFC enclosure, and robust ABB quality to optimize OEM uptime and maintenance budgets, especially where DC motors are preferred for precise speed control and low-noise operation.
Product Information
Extended Description
7BVP3411-14 ABB: DC PM IEC Flange 0.25 Hp (VP3411-14)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.18/.25HP,1750RPM,DC,D71C,3410P,TEF
Ambient Temperature
40 °C
Armature Current
1.4 A
Armature Inertia
3.9 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3411-14
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6242: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
71
Global Commercial Alias
VP3411-14
Gross Volume
2200.078 in³
Gross Weight
30 lb
Horsepower Rating UL/CSA
0.250 Hp
Insulation Class
F
Invoice Description
.18/.25HP,1750RPM,DC,D71C,3410P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, .18/.25 HP, Frame Size D71C, 0 Phase, TEFC Enclosure, (VP3411-14)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D71C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.25 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
30 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6242-4169
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.55 in
Short Description
.18/.25 HP, Frame Size D71C, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 0.25 HP DC PM IEC Flange motor delivers precise speed control with a 180 V armature and 1750 r/min base speed, enabling accurate drive for small conveyors and packaging lines. This translates to predictable throughput, reduced cycle times, and lower energy waste in continuous operation. Application: ideal for compact automation stations where space is at a premium and performance must remain steady across shifts. Feature → Business Impact → Application: TEFC enclosure and steel frame (D71C) provide robust protection in demanding environments, reducing maintenance cycles and extending service life for OEM equipment exposed to dust and humidity. Application: food, packaging, and material handling lines requiring reliable sealing and durability. Feature → Business Impact → Application: Foot-mounted, horizontal mounting orientation supports quick installation, minimizes alignment errors, and simplifies retrofits in existing conveyor setups. Application: retrofits and new builds where standard flange patterns streamline integration. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time delivers rapid replacements, minimizing downtime and supporting lean inventory strategies. Application: OEMs and repair shops needing fast turnaround for spare motors. Feature → Business Impact → Application: Certifications (CE, CSA, UR, WEEE) ensure regulatory compliance and safer operation across international sites, reducing risk during audits and end-of-life recycling. Application: global deployments with strict safety and environmental requirements. Industry context: the VP3411-14 aligns with IEC flange standards, dimension sheet 34LY6242, and a 71 frame size for consistent interchangeability across similar drives, improving parts compatibility and procurement efficiency.
