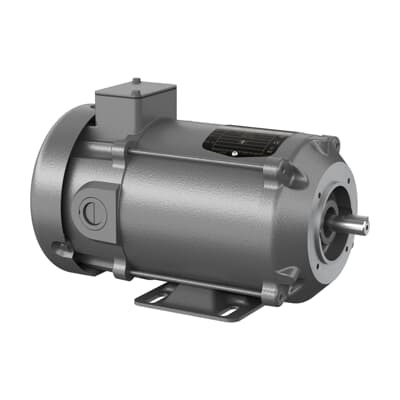

ABB VP3416-14 DC PM IEC Flange - CE Certified
Part Number: 7BVP3416-14
Quick Summary
ABB VP3416-14 is a DC PM IEC Flange motor for compact drive applications in automation and conveyors. Engineers face space constraints, reliability demands, and energy costs when selecting motors for line equipment. This unit carries multiple certifications for global use, including CE, CSA, UR, and WEEE, supporting safe operation and regulatory compliance in diverse markets. The combination of a TEFC enclosure, frame size D71C, and 0.33 HP output provides predictable performance in demanding environments. By leveraging standard IEC flange mounting and a foot-mounted base, this motor delivers installation flexibility and reduced integration risk, while reducing total cost of ownership over time.
Product Information
Extended Description
7BVP3416-14 ABB: DC PM IEC Flange 0.33 Hp (VP3416-14)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.25/.33HP,1750RPM,DC,D71C,3413P,TEF
Ambient Temperature
40 °C
Armature Current
1.7 A
Armature Inertia
5.07 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3416-14
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6242: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
71
Global Commercial Alias
VP3416-14
Gross Volume
2200.078 in³
Gross Weight
31 lb
Horsepower Rating UL/CSA
0.330 Hp
Insulation Class
F
Invoice Description
.25/.33HP,1750RPM,DC,D71C,3413P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, .25/.33 HP, Frame Size D71C, 0 Phase, TEFC Enclosure, (VP3416-14)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D71C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.33 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
31 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6242-4397
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.55 in
Short Description
.25/.33 HP, Frame Size D71C, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Compact footprint with frame size D71C and TEFC enclosure translates to easier enclosure mounting and flexible installation in tight spaces. This reduces panel space requirements and lowers initial hardware costs during retrofits, enabling rapid deployment on automation lines. It is particularly advantageous for conveyors, packaging lines, and small pumps where mounting clearance is limited. DC PM technology delivering 0.33 Hp at 1750 r/min with a 180 V armature and 1.7 A current provides smooth torque response and higher efficiency. These electrical characteristics translate to lower energy consumption per load and improved thermal performance, extending motor life in continuous-duty operation. The design supports straightforward speed control and reliable startup in variable-load applications such as material handling and process equipment. Insulation Class F and TEFC enclosure deliver robust thermal and environmental protection in typical factory settings. With ambient temperature rated at 40 °C, the motor maintains performance without derating in many installations. Sealed 6203 bearings reduce maintenance intervals and extend service life, supporting predictable uptime on critical lines like packaging and filling systems. Availability and logistics are strong, with Stocked At Warehouses across US, Germany, China, and other locations; 0-day lead times are available from select suppliers. Regulatory and warranty considerations are clear, as CE, CSA, UR, and WEEE certifications aid multi-region compliance and safe disposal, while the warranty policy reinforces predictable maintenance cycles and ROI for distributors and end users.
Get a Quick Quote for a ABB 7BVP3416-14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3416-14?
Enquire Now
FAQs
Yes. The VP3416-14 uses standard IEC flange mounting and a TEFC (Totally Enclosed Fan C cooled) enclosure, with a frame size of D71C and a foot-mounted base, making it suitable for compact drive installations in conveyors and packaging lines.
Key specs include 0.33 Hp output, 1750 r/min rated speed, 180 V armature voltage, and 1.7 A armature current. The DC PM design enables efficient operation with good torque response, supporting continuous-duty applications in automated lines.
Yes. With a 0.33 Hp output and 1750 r/min base speed, a TEFC enclosure, and a sturdy D71C frame, the VP3416-14 provides reliable, space-efficient drive performance for conveyors, pumps, and fans in factory settings.
Certifications include CE, CSA, UR, and WEEE, which support electrical safety, product safety, and environmental disposal compliance across multiple regions, reducing risk during installation and maintenance.
The motor uses sealed bearings (6203) and is designed for long service life in 40 °C ambient environments, reducing maintenance intervals. Stocked in multiple warehouses improves availability and reduces downtime, delivering favorable total cost of ownership.
