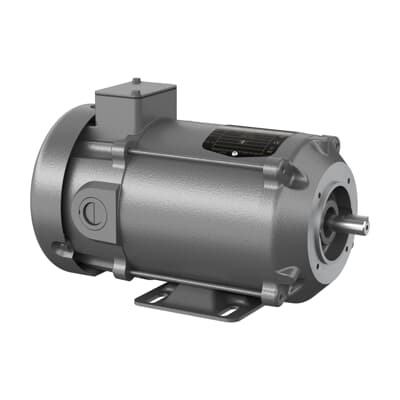

ABB 7BVP3428-14 DC PM IEC Flange - CE/CSA/UR
Part Number: 7BVP3428-14
Quick Summary
DC PM IEC Flange motors, the ABB 7BVP3428-14, deliver 0.5 HP in a compact IEC flange package for industrial drives. This design minimizes footprint while maximizing efficiency in conveyor, packaging, and machine tool applications. Prime challenges for engineers include space constraints, fast procurement, and uptime targets; this model addresses them with 0-day lead times and US-origin manufacturing to simplify sourcing. It carries CE, CSA, UR, and WEEE certifications, along with a TEFC enclosure and IEC frame size D71C, ensuring reliable operation in demanding environments. By combining a rugged steel frame with sealed bearings and a 3000 r/min base speed, it enables easy integration with standard motor bases and horizontal mounting, supporting predictable maintenance and lifecycle cost reduction.
Product Information
Extended Description
7BVP3428-14 ABB: DC PM IEC Flange 0.50 Hp (VP3428-14)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.37KW/.5HP/3000RPM/TEFC/IEC/71C MOT
Ambient Temperature
40 °C
Armature Current
2.5 A
Armature Inertia
6.24 ft·lbf
Armature Voltage
180 V
Base Speed
3000 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VP3428-14
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6242: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
71
Global Commercial Alias
VP3428-14
Gross Volume
2110.969 in³
Gross Weight
31 lb
Insulation Class
F
Invoice Description
.37KW/.5HP/3000RPM/TEFC/IEC/71C MOTOR
Made To Order
No
Medium Description
DC PM IEC Flange, 0.5 HP, Frame Size D71C, 0 Phase, TEFC Enclosure, (VP3428-14)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D71C
Mounting Orientation
Horizontal
Order Multiple
1 piece
Output Power
0.50 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
31 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
3000 r/min
Replaced Product ID (OLD)
7B34-6242Z132
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.55 in
Short Description
0.5 HP, Frame Size D71C, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
Feature → Business Impact → Application: The DC PM IEC Flange design enables a compact footprint that reduces cabinet space and wiring complexity, delivering measurable installation time savings and improved access for routine maintenance in tight machine layouts. This directly supports projects in packaging lines and conveyor systems where space is at a premium and downtime is costly. The 0.5 HP rating at 3000 r/min provides robust torque for light- to mid-load conveyors and machine tools, improving line throughput while preserving energy efficiency in continuous operation. The TEFC enclosure combined with frame size D71C and a 71C motor profile delivers rugged performance in dirty industrial environments, extending service intervals and lowering total cost of ownership. With a 0-phase DC PM configuration and a 180 V armature voltage, installation is straightforward in legacy DC control schemes, reducing retrofits and integration risk. Stocked at multiple warehouses (US, Europe, Asia) with 0 day lead time reinforces supply chain resilience, enabling faster project delivery and lower inventory carrying costs. Certifications CE, CSA, UR, and WEEE simplify regulatory compliance and procurement across global sites, reducing risk in multinational deployments. This model’s 31 lb gross weight and 11.5 in width fit neatly into standard motor bases, supporting quick bolt-on installations and seamless retrofits in existing lines. In practice, users see improved uptime, predictable performance, and lower lifecycle costs when integrating this motor into IEC-compliant drive systems.
Get a Quick Quote for a ABB 7BVP3428-14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3428-14?
Enquire Now
FAQs
This model is designed for foot-mounted, horizontal mounting with a frame size D71C. The shaft diameter is 0.55 inches, and the overall footprint aligns with standard IEC flange configurations to simplify retrofit and bolt-on installation. It is compatible with typical IEC 71C motor bases and can be integrated into existing drive systems without extensive rework.
The motor operates at 180 V armature voltage, draws approximately 2.5 A, and delivers 0.5 HP at a base speed of 3000 r/min. It features Insulation Class F and a TEFC enclosure, suitable for challenging environments. With a 0-phase DC PM configuration, it integrates easily with DC controls and provides reliable speed regulation and torque in continuous-duty applications.
Yes. The Type of Duty is Continuous, and the 0-phase DC PM design supports extended run times with predictable performance. Its TEFC enclosure and frame size D71C are tailored for packaging, conveying, and light-tooling applications where steady torque and minimal maintenance are critical for uptime.
The motor carries CE, CSA, UR, and WEEE certifications, ensuring regulatory compliance across many regions. It is manufactured in the United States, with stock available through multiple warehouses to support rapid procurement and supply chain resilience.
Warranty terms indicate standard warranty with procurement returns for warranty-related issues. The motor’s sealed bearings and TEFC design reduce maintenance frequency, while 0-day lead times and distributed stocking minimize downtime and accelerate project ROI. Minimum order quantity is 1 piece, simplifying small-batch procurement.
