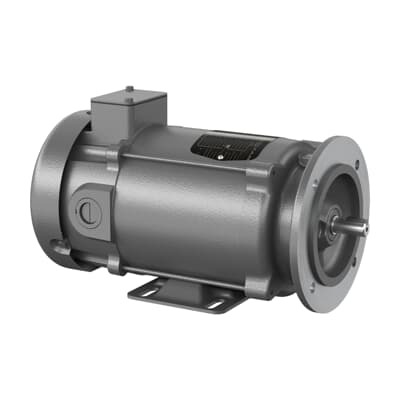

ABB 7BVP3428D DC PM IEC Flange 0.373 Hp - CE/CSA/UR/WEEE
Part Number: 7BVP3428D
Quick Summary
ABB 7BVP3428D is a DC PM IEC Flange motor delivering 0.373 Hp for compact drives in automation. This design enables reliable torque and compact footprint for conveyor systems and machine tools. It addresses common challenges such as startup current, space constraints, and cross-border regulatory needs by combining robust performance with global certifications. With CE, CSA, UR, and WEEE compliance, it supports international procurement and risk mitigation. The TEFC enclosure, frame size D71D, and foot-mounted configuration simplify installation in diverse environments while delivering predictable maintenance intervals. Global warehouse stocking across multiple regions translates to shorter lead times and lower total cost of ownership for industrial teams and system integrators.
Product Information
Extended Description
7BVP3428D ABB: DC PM IEC Flange 0.373 Hp (VP3428D)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.37/.50KW,3000RPM,DC,D71D,3416P,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
2.5 A
Armature Inertia
6.24 ft·lbf
Armature Voltage
180 V
Base Speed
3000 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3428D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6173: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
71
Global Commercial Alias
VP3428D
Gross Volume
2200.078 inÂł
Gross Weight
32 lb
Horsepower Rating UL/CSA
0.373 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
.37/.50KW,3000RPM,DC,D71D,3416P,TEFC,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM IEC Flange, .37/.50 HP, Frame Size D71D, 0 Phase, TEFC Enclosure, (VP3428D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D71D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.373 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
32 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
3000 r/min
Replaced Product ID (OLD)
7B34-6173Z132
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.55 in
Short Description
.37/.50 HP, Frame Size D71D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
DC PM IEC Flange motors deliver efficient, high-torque operation at 0.373 Hp, enabling improved drive efficiency and reduced energy consumption in light- to medium-load applications such as conveyors and packaging lines. The IEC flange format and frame size D71D streamline retrofits and new builds, saving space without sacrificing performance in compact automation installs. The TEFC enclosure provides dust and moisture resistance, lowering maintenance frequency and extending service intervals in harsh factory floor environments. Armature voltage of 180 V and current of 2.5 A support compatible control schemes, including common VFDs, enabling precise speed control in automated line equipment. Regreasable bearings (6203) with a robust frame and 32 lb weight offer reliable longevity, reducing downtime during large-scale production runs. Stocked-at warehouses in the US, Germany, and China accelerates procurement cycles and minimizes inventory risk for integrators and OEMs. Frame size D71D and 0 PH operation compatibility enhance installation versatility across conveyor systems and machine tools, delivering measurable ROI through predictable performance and lower lifecycle costs.
Get a Quick Quote for a ABB 7BVP3428D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3428D?
Enquire Now
FAQs
The motor features a foot-mounted configuration with a TEFC (Totally Enclosed Fan C cooled) enclosure, which simplifies mounting on common conveyor and machine-tool frames and reduces the need for additional protective housings. The horizontal mounting orientation further eases alignment with existing drives and gearboxes.
Key specs include 180 V armature voltage, 2.5 A armature current, and a base speed of 3000 r/min. It delivers 0.373 Hp and is designed to work with standard industrial controls and VFDs, enabling smooth speed control and predictable torque delivery in DC drive applications.
Yes. It is a continuous-duty DC PM IEC flange motor with a TEFC enclosure, rated for industrial environments. Its 40 °C ambient rating and 1000 m altitude consideration support reliable operation across typical factory floors while minimizing maintenance cycles.
The motor carries CE, CSA, UR, and WEEE certifications, ensuring compliance with EU, North American safety standards, and environmental disposal requirements, reducing regulatory risk during multi-region deployments.
This model is stocked at multiple warehouses (including US, Germany, China, and more), enabling faster fulfillment. Warranty terms indicate that warranty returns apply, and the distributor provides guidance on replacement and maintenance to maximize uptime and ROI.
