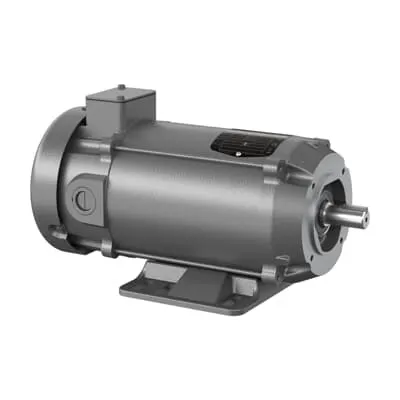

ABB 7BVP3436-14 DC PM IEC Flange - 0.75 Hp CE/CSA/UR/WEEE
Part Number: 7BVP3436-14
Quick Summary
DC PM IEC Flange 7BVP3436-14 from ABB powers compact 0.75 HP drives in conveyors and processing equipment. Engineers often struggle with space constraints, thermal management, and compatibility across control systems. This design supports global compliance with CE, CSA, UR, and WEEE certifications, ensuring safe operation and easy cross-border deployment. Its TEFC enclosure and frame size D80C are chosen for rugged industrial environments, reducing downtime. By combining robust performance with straightforward installation, it helps maintenance teams lower total cost of ownership and accelerate project delivery. Additionally, the supplier information confirms 0 day lead time and immediate availability from multiple stocked warehouses, smoothing procurement. With a 1750 rpm base speed and a 0.75 HP rating, it aligns with standard motor drives for a wide range.
Product Information
Extended Description
7BVP3436-14 ABB: DC PM IEC Flange 0.75 Hp (VP3436-14)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.56/.75HP,1750RPM,DC,D80C,3428P,TEF
Ambient Temperature
40 °C
Armature Current
3.7 A
Armature Inertia
10.93 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3436-14
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6243: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
80
Global Commercial Alias
VP3436-14
Gross Volume
2200.078 in³
Gross Weight
40 lb
Horsepower Rating UL/CSA
0.750 Hp
Insulation Class
F
Invoice Description
.56/.75HP,1750RPM,DC,D80C,3428P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, .56/.75 HP, Frame Size D80C, 0 Phase, TEFC Enclosure, (VP3436-14)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D80C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.75 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
40 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6243-3946
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.75 in
Short Description
.56/.75 HP, Frame Size D80C, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: The ABB 7BVP3436-14 DC PM IEC Flange motor combines a D80C frame and TEFC enclosure with a 0.75 HP rating at 1750 rpm. This compact, rugged package minimizes machine footprint, improves heat dissipation, and reduces enclosure fatigue, extending service life in demanding environments. The business impact is lower installation cost and faster commissioning on conveyors and packaging lines. In practice, this means OEMs can retrofit existing lines without major cabinet redesigns, accelerating time-to-market and reducing project risk. Feature: Foot-mounted, horizontal mounting with a 0.75 in shaft diameter and insulation class F for a 40 °C ambient. Impact: easier alignment, reliable startup torque, and reduced vibration translate into longer bearing life and lower maintenance costs. Application: ideal for upgrading existing conveyors or integrating into compact automation cells with limited clearance. Feature: Stocked at warehouses in the United States, China, and Singapore with a 0-day lead time. Impact: minimizes downtime and accelerates project timelines for OEMs and integrators. Application: rapid deployment for production lines, retrofits, and field repair programs. Feature: Certifications CE, CSA, UR, and WEEE, aligned with IEC-based design. Impact: regulatory compliance is simplified, audits are faster, and risk is reduced in multinational installations. Application: global machine builders deploying across North America, Europe, and Asia benefit from rapid acceptance and smoother integration. Feature: Compatibility with Baldor-Reliance VP3436-14 naming and standard components; Designed for easy retrofit and steady supply chain. Impact: reduces spare-part variety, improves lifecycle planning, and lowers total cost of ownership.
