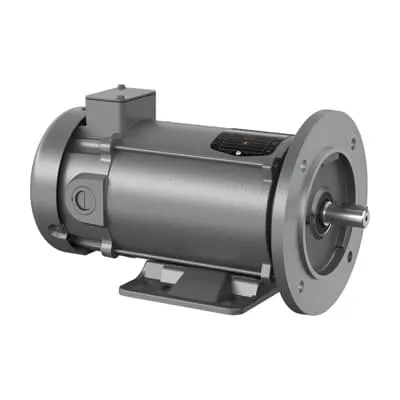

ABB VP3436D DC PM IEC Flange - CE CSA UR
Part Number: 7BVP3436D
Quick Summary
ABB VP3436D DC PM IEC Flange motor delivers a reliable 0.75 HP drive suitable for conveyors, mixers, and processing lines in demanding environments. Its compact, foot-mounted design simplifies retrofits and reduces installation downtime, addressing common integration challenges. Certified for CE, CSA, UR with WEEE compliance, it meets global safety and regulatory requirements, while the IEC-based DC PM configuration ensures consistent performance. With stock in multiple warehouses across the US and internationally, this model minimizes lead times and lowers total cost of ownership, making it a strong fit for capital-intensive automation projects in modern plants.
Product Information
Extended Description
7BVP3436D ABB: DC PM IEC Flange 0.75 Hp (VP3436D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.57/.75HP,1750RPM,DC,D80D,3428P,TEF
Ambient Temperature
40 °C
Armature Current
3.7 A
Armature Inertia
10.93 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3436D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6483: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
80
Global Commercial Alias
VP3436D
Gross Volume
2200.078 inÂł
Gross Weight
40 lb
Horsepower Rating UL/CSA
0.750 Hp
Insulation Class
F
Invoice Description
.57/.75HP,1750RPM,DC,D80D,3428P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, .57/.75 HP, Frame Size D80D, 0 Phase, TEFC Enclosure, (VP3436D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D80D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.75 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
40 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6483-3946
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.75 in
Short Description
.57/.75 HP, Frame Size D80D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The DC PM IEC Flange design delivers high efficiency and precise control, translating to measurable energy savings and tighter process margins in continuous run environments such as packaging lines and material handling. Application: Use in belt conveyors and process equipment to reduce total cost of ownership while maintaining reliable start/stop performance. Feature → Business Impact → Application: TEFC enclosure and frame size D80D provide robust protection in dirty, high-vibration factories, increasing mean time between failures and reducing maintenance cycles. Application: Suitable for heavy-duty industrial lines where uptime is critical. Feature → Business Impact → Application: Sealed 6206 bearing and 0.75 in shaft diameter enable long life under frequent starts and stops, improving uptime in high-cycle applications. Application: Food and beverage, automotive assembly, and plastics processing where precision torque is necessary. Feature → Business Impact → Application: Insulation Class F and 180 V armature voltage support stable operation in varied ambient temperatures, minimizing derating in hot plants. Application: HVAC ducting, textile machinery, and robotics integrators seeking predictable performance. Feature → Business Impact → Application: Stocked at US and international warehouses (US, DE, CN, etc.) with 0-day lead time capability reduces downtime and accelerates project timelines. Application: System integrators and OEMs planning global rollouts benefit from fast, reliable fulfillment. Feature → Business Impact → Application: Certifications (CE, CSA, UR, WEEE) ensure compliance across markets, enabling smooth audits and faster time-to-market. Application: Global installations with strict regulatory requirements for safety and end-of-life management.
Get a Quick Quote for a ABB 7BVP3436D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3436D?
Enquire Now
FAQs
Yes. The VP3436D is designed as a DC PM IEC Flange motor with IEC flange compatibility and a foot-mounted configuration, facilitating straightforward retrofits and reliable installation in existing belts, conveyors, and process lines.
The motor delivers 0.75 HP at 1750 r/min, with an armature voltage of 180 V. It uses a TEFC enclosure and frame size D80D, aligning with many Baldor-Reliance drive systems for consistent torque and performance.
Ideal for continuous-duty industrial drives such as conveyors, processing lines, and packaging equipment. Its compact form, reliable 0.75 HP output, and TEFC enclosure make it well-suited for spaces with limited room and environments subject to dust, vibration, and variable temperatures.
The VP3436D carries CE, CSA, UR certifications and WEEE compliance, with IEC standards support. These certifications help meet global safety and environmental requirements, easing audits and enabling cross-border deployments.
Warranty terms indicate that products under warranty must be returned if issues arise. Maintenance considerations include operating within insulation class F limits, ensuring sealed bearings remain lubricated, and periodic inspection of the TEFC enclosure to sustain reliability in harsh factory environments.
