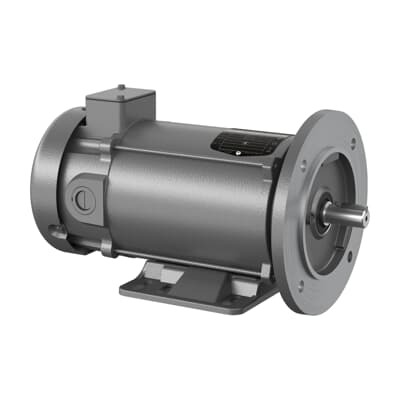

ABB VP3439D DC PM IEC Flange - CE CSA UR WEEE
Part Number: 7BVP3439D
Quick Summary
ABB VP3439D is a DC PM IEC Flange motor designed for reliable drive in conveyors and process lines. Engineers often struggle with retrofit compatibility, long lead times, and finding a motor that fits IEC and TEFC requirements. This model carries CE, CSA, UR, and WEEE certifications, supporting global compliance and safety across markets. With a compact D80D frame, 0 phase DC configuration, and TEFC enclosure, it aligns with demanding layouts while simplifying installation. Stocked at multiple warehouses in the US, Europe, and Asia, it reduces risk and shortens procurement cycles for project timelines.
Product Information
Extended Description
7BVP3439D ABB: DC PM IEC Flange 0.75 Hp (VP3439D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.57/.75HP,3000RPM,DC,D80D,3420P,TEF
Ambient Temperature
40 °C
Armature Current
3.6 A
Armature Inertia
7.8 ft·lbf
Armature Voltage
180 V
Base Speed
3000 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3439D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6483: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
80
Global Commercial Alias
VP3439D
Gross Volume
2200.078 in³
Gross Weight
37 lb
Horsepower Rating UL/CSA
0.750 Hp
Insulation Class
F
Invoice Description
.57/.75HP,3000RPM,DC,D80D,3420P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, .56/.75 HP, Frame Size D80D, 0 Phase, TEFC Enclosure, (VP3439D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D80D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.75 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
37 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
3000 r/min
Replaced Product ID (OLD)
7B34-6483-5699
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.75 in
Short Description
.56/.75 HP, Frame Size D80D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
The VP3439D uses a DC PM IEC flange design to deliver high torque in a compact footprint, enabling efficient integration into tight automation layouts. This feature translates to improved machine uptime and energy efficiency, particularly on conveyor lines and packaging equipment where space is at a premium. The TEFC enclosure and insulation class F protect the windings from harsh environments, reducing maintenance costs and extending service intervals in continuous-duty applications. With a frame size of D80D and a foot-mounted base, installation is straightforward on existing baseplates and machine frames, minimizing retrofit risk and downtime. The 0-phase DC configuration simplifies wiring in DC-driven systems and helps standardize control architectures, leading to lower wiring errors and faster commissioning. Armature voltage of 180 V and a rated speed of 3000 r/min provide predictable performance for high-speed operations, improving process consistency. Stock availability across Menden, Germany; China; Alabama and Alaska warehouses shortens lead times and enhances supply chain resilience for global projects. Certifications CE, CSA, UR, and WEEE amplify regulatory confidence and ease of cross-border deployment, particularly in healthcare, food & beverage, and material handling scenarios. The product’s 37 lb weight and 0.75 HP output strike a balance between maneuverability and power, enabling flexible mounting in tight spaces without sacrificing torque. Industry professionals will appreciate the combination of standard IEC interfaces, a robust TEFC enclosure, and proven bearings (6206 sealed and 6203 NDE) for reliable operation in continuous duty environments.
