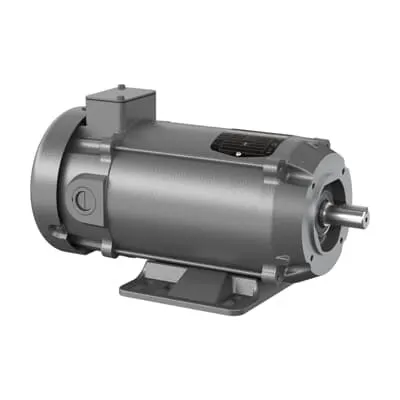

ABB 7BVP3455-14 DC PM IEC Flange CE CSA UR WEEE
Part Number: 7BVP3455-14
Quick Summary
The ABB 7BVP3455-14 is a DC permanent-magnet IEC flange motor designed for compact, high-efficiency drive applications in conveyors, pumps, and fans. This 1 HP unit delivers dependable performance with a TEFC enclosure and a frame size of D80C, making it suitable for continuous-duty operation in industrial environments. A key procurement advantage is its immediate availability, with stock across multiple warehouses and a 0 day lead time, reducing project delays. Compliance is demonstrated through CE, CSA, and UR markings, along with WEEE considerations for responsible disposal. The motor’s US-origin manufacturing supports traceability and quality expectations, while its regreasable bearings simplify maintenance planning and lifecycle cost management. This balance of performance and availability supports lean manufacturing and uptime commitments.
Product Information
Extended Description
7BVP3455-14 ABB: DC PM IEC Flange 1 Hp (VP3455-14)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
075/1HP,1750RPM,DC,D80C,3435P,TEFC,
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
5 A
Armature Inertia
13.66 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3455-14
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6243: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
80
Global Commercial Alias
VP3455-14
Gross Volume
2200.078 inÂł
Gross Weight
45 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
075/1HP,1750RPM,DC,D80C,3435P,TEFC,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM IEC Flange, .75/1 HP, Frame Size D80C, 0 Phase, TEFC Enclosure, (VP3455-14)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D80C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
45 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6243-3865
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.75 in
Short Description
.75/1 HP, Frame Size D80C, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | Singapore, Singapore | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The VP3455-14 combines a DC PM design with an IEC flange mounting for high efficiency and compact footprint, delivering 1 HP at 1750 r/min with 180 V armature voltage and 5 A current. This translates to improved energy efficiency during continuous operation in material handling lines and packaging systems, reducing operating costs while maintaining steady torque. Application: Suitable for horizontal, foot-mounted installations in TEFC enclosures, it supports reliable startup and consistent performance in conveyors, pumps, and fans with minimal space impact. Feature → Business Impact → Application: Frame D80C, insulation class F, and a 40 °C ambient tolerance enable operation in factory floors with moderate heat; this provides broader application viability in standard industrial environments without specialized cooling. Application: Ideal for OEMs targeting IEC-driven automation where ease of retrofit and compatibility with Baldor-Reliance design language matters. Feature → Business Impact → Application: Regreasable bearings and sealed 6205/6203 bearings extend maintenance intervals and reduce total cost of ownership; customers benefit from predictable service windows and reduced unplanned downtime. Application: Suitable for retrofit projects and new lines where uptime is critical. Feature → Business Impact → Application: Stocked At Warehouses across multiple regions (US, Germany, Singapore, China, Alabama, Alaska) with 0 day lead time, enabling rapid procurement and project scheduling; this minimizes inventory risk and accelerates commissioning. Application: Procurement teams in high-mix, low-volume automation environments gain faster access to standard DC PM IEC flange motors without sacrificing performance. Feature → Business Impact → Application: Certifications CE, CSA, UR and WEEE compliance provide regulatory assurance and smoother end-user acceptance; this reduces risk in audits and customer approvals. Application: Preferred choice for quality-conscious machine builders and integrators targeting global markets.
Get a Quick Quote for a ABB 7BVP3455-14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3455-14?
Enquire Now
FAQs
The 7BVP3455-14 is a foot-mounted, horizontal-mount DC PM IEC flange motor with a TEFC enclosure and a D80C frame. It is designed for 180 V armature input and 1 HP output at 1750 rpm, suitable for conversion-ready installation in conveyor, pump, or fan drives. For AC systems, a DC drive or converter is required to drive the motor; no three-phase direct connection is standard for this model.
Key specs include 1 HP output, 1750 r/min base speed, 180 V armature voltage, and 5 A armature current. The frame size is D80C with a TEFC enclosure, insulation class F, and a weight around 45 lb. Bearings are sealed 6205 and 6203, with regreasable lubrication. This combination supports reliable continuous operation in typical industrial environments.
Yes. The 7BVP3455-14 is designed for continuous-duty applications with stable torque at 1 HP. Its TEFC enclosure provides protection in standard factory environments, and the 40 °C ambient rating broadens suitability for moderate heat areas like packaging lines or material handling stations.
This motor carries CE, CSA, UR, and WEEE markings, indicating compliance with European safety, North American safety standards, and waste electrical and electronic equipment regulations. These certifications support regulatory approvals, facilitate cross-border deployments, and simplify supplier qualification audits.
With regreasable bearings and a standard seal set, maintenance can be scheduled at regular intervals to maximize uptime. The warranty policy notes that warranty returns require sending the product back, so plans should include a service and replacement strategy. Stock availability across warehouses reduces downtime during procurement and commissioning, improving return on investment for automation projects.
