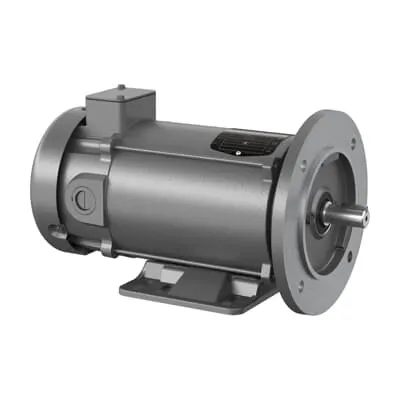

ABB 7BVP3455D DC PM IEC Flange - CE/CSA/UR; TEFC
Part Number: 7BVP3455D
Quick Summary
ABB 7BVP3455D is a DC PM IEC flange motor designed for precise, high-efficiency drives in industrial conveyors and pumps. Manufacturers often face fitment challenges, long lead times, and downtime when motor compatibility is unclear. This model delivers a TEFC enclosure, frame size D80D, 1 HP rating, and 180 V armature for robust, serviceable performance. It carries CE, CSA, and UR certifications with WEEE compliance, supporting global regulatory requirements. Stocked at multiple warehouses in the US, Europe, and Asia, it helps shorten procurement and maintenance cycles. The design aligns with IEC standards and offers straightforward installation, reliable lubrication, and predictable lifecycle costs for industrial automation projects.
Product Information
Extended Description
7BVP3455D ABB: DC PM IEC Flange 1 Hp (VP3455D)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75/1HP,1750RPM,DC,D80D,3435P,TEFC,
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
5 A
Armature Inertia
13.66 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3455D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6483: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
80
Global Commercial Alias
VP3455D
Gross Volume
2200.078 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
.75/1HP,1750RPM,DC,D80D,3435P,TEFC,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM IEC Flange, .75/1 HP, Frame Size D80D, 0 Phase, TEFC Enclosure, (VP3455D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D80D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
46 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6483-3865
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.75 in
Short Description
.75/1 HP, Frame Size D80D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | Singapore, Singapore | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: DC PM IEC Flange motor with 1 HP output, 1750 rpm, and a compact frame size D80D. Business Impact: Delivers excellent efficiency with a smaller footprint, reducing wiring lengths and simplifying panel layouts. Application: Ideal for speed-critical conveyors and pump drives in packaging and material handling. Feature: TEFC enclosure and foot-mounted, horizontal mounting. Business Impact: Enhances protection against dust and moisture while simplifying installation alignment. Application: Suitable for factory floors and machine halls where robust protection and easy alignment matter. Feature: Armature voltage 180 V, insulation class F, no brake, rated 1 HP at 1750 rpm. Business Impact: Predictable performance across ambient up to 40 °C and altitude up to 1000 m, enabling reliable operation in diverse environments. Application: Continuous-duty automation lines, fans, and process equipment. Feature: Regreasable lubrication and service factor 1.0. Business Impact: Lower maintenance costs and longer service intervals, reducing total cost of ownership. Application: High-cycle conveyors and demanding industrial drives. Feature: Stocked at multiple warehouses (US, DE, SG, CN, AL, AK) with clear warranty terms. Business Impact: Shorter lead times and better spare-parts availability, improving uptime. Application: Global OEM projects and aftermarket support with consistent reliability.
