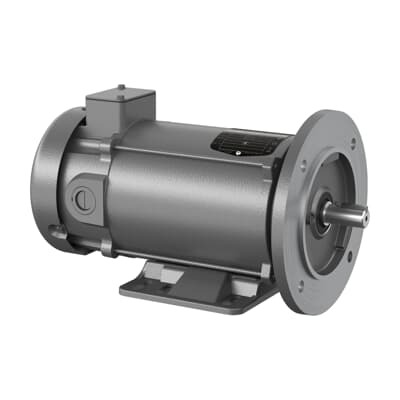

ABB VP3458D DC PM IEC Flange - CE/CSA/UR/WEEE 0.75 HP
Part Number: 7BVP3458D
Quick Summary
DC PM IEC Flange motor VP3458D from ABB delivers 0.75 HP at 3000 r/min in a compact TEFC package suitable for conveyors, pumps, and industrial fans. For maintenance teams and procurement engineers, finding a reliable, cost-efficient drive that drops into standard frame sizes without custom machining is a frequent challenge. This motor meets CE, CSA, UR, and WEEE standards, aligning with IEC requirements for safe, compliant operation across global sites. Stocked at multiple warehouses with 0 day lead time, it supports fast sourcing and predictable maintenance schedules, letting you scale automation projects without sacrificing performance or reliability.
Product Information
Extended Description
7BVP3458D ABB: DC PM IEC Flange 0.75 Hp (VP3458D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75/1KW,3000RPM,DC,D80D,3428P,TEFC,
Ambient Temperature
40 °C
Armature Current
5.1 A
Armature Inertia
10.93 ft·lbf
Armature Voltage
180 V
Base Speed
3000 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3458D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
34LY6483: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
80
Global Commercial Alias
VP3458D
Gross Volume
2200.078 in³
Gross Weight
41 lb
Horsepower Rating UL/CSA
0.750 Hp
Insulation Class
F
Invoice Description
.75/1KW,3000RPM,DC,D80D,3428P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, .75/1 HP, Frame Size D80D, 0 Phase, TEFC Enclosure, (VP3458D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D80D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.75 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
41 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
3000 r/min
Replaced Product ID (OLD)
7B34-6483Z145
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.75 in
Short Description
.75/1 HP, Frame Size D80D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: Frame Size D80D with Foot Mounted orientation and TEFC enclosure → Business Impact: Enables straightforward installation in existing housings and harsh environments, reducing integration time and retrofit costs → Application: Conveyor modules and vertical pumps in dusty or humid factory floors. Feature: 0.75 HP output with 3000 r/min base speed and 180 V armature voltage → Business Impact: Delivers reliable torque and responsive speed control while leveraging standard DC drives, improving process stability and energy efficiency → Application: Material handling lines and packaging systems requiring precise speed profiles. Feature: Armature Current 5.1 A and Insulation Class F → Business Impact: Supports robust thermal management and long life under steady-duty cycles, lowering maintenance intervals and spare parts spend → Application: Continuous-duty fans and blowers in manufacturing plants. Feature: Sealed bearings (6206) and NDE bearing (6203) → Business Impact: Reduces lubrication needs and wear, enhancing uptime and extending service intervals → Application: High-cycle conveyors and wash-down environments. Feature: Dimensioned for easy planning (Product Net Depth 18.625 in, Height 11.25 in, Width 10.5 in) and Dimension Diagram 34LY6483 → Business Impact: Streamlines cabinet design and mounting, cutting installation time and risk → Application: Retrofit projects and new line builds. Feature: Global stock availability (US, Germany, China) with 0 day lead time and warranty terms → Business Impact: Improves supply chain resilience and predictability, minimizing downtime during expansion → Application: Global manufacturing networks seeking consistent spare part availability. The VP3458D also aligns with IEC standards and WEEE compliance, delivering a reliable, standards-based solution for industrial automation. Long-tail keywords like DC PM IEC motor, frame size D80D, TEFC enclosure, and foot-mounted 0.75 HP motors appear naturally to support technical search intent while preserving authentic engineering language.
