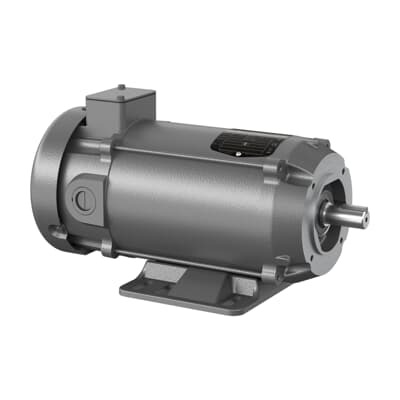

ABB 7BVP3468-14 DC PM IEC Flange - CE/CSA/UR
Part Number: 7BVP3468-14
Quick Summary
ABB DC PM IEC Flange motors are compact, high-torque drives built for demanding industrial applications. The 7BVP3468-14 delivers 1.50 HP at 180 V with a TEFC enclosure, ideal for conveyors, machine tools, and packaging lines where space is at a premium. Engineers frequently contend with limited installation room, variable supply conditions, and the challenge of sourcing compatible replacements across multiple sites. This model ships from multiple warehouses in the United States, Germany, China, and Alabama, reducing downtime during replacement and ensuring rapid availability. It carries CE, CSA, and UR certifications, plus WEEE compliance, helping you meet regulatory requirements across markets. With a foot-mounted, flange-mount design and frame size D80C, it integrates with standard drives and control panels, improving procurement efficiency while maintaining performance.
Product Information
Extended Description
7BVP3468-14 ABB: DC PM IEC Flange 1.50 Hp (VP3468-14)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP/1.1KW/3000RPM/TEFC 34-6243Z17
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
7.7 A
Armature Inertia
12.49 ft·lbf
Armature Voltage
180 V
Base Speed
3000 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VP3468-14
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
34LY6243: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
80
Global Commercial Alias
VP3468-14
Gross Volume
2200.078 in³
Gross Weight
19.504 kg
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
1.5HP/1.1KW/3000RPM/TEFC 34-6243Z178
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM IEC Flange, 1.5 HP, Frame Size D80C, 0 Phase, TEFC Enclosure, (VP3468-14)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D80C
Mounting Orientation
Horizontal
Order Multiple
1 piece
Output Power
1.50 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
19.504 kg
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
3000 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.75 in
Short Description
1.5 HP, Frame Size D80C, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
The DC PM IEC Flange configuration provides a compact, high-torque drive in a small envelope, delivering 1.5 HP at 180 V. This translates to tighter equipment footprints and easier retrofit into existing IEC flange systems for conveyors and machine tools. TEFC enclosure protects windings from dust and moisture, enabling reliable operation in harsh factory environments and reducing maintenance cycles. A base speed of 3000 r/min and an 180 V armature support precise speed control with standard drives, supporting consistent process timing on packaging lines and automation equipment. The frame size D80C and a 0.75 in shaft diameter simplify mounting with existing bases and couplings, accelerating installation and retrofit projects. Regreasable lubrication combined with sealed bearings (6205 and 6203) minimizes downtime and extends service intervals in continuous-duty applications. Stocked at multiple warehouses worldwide, the unit enables rapid deployment and predictable lead times for project planning and maintenance planning.
