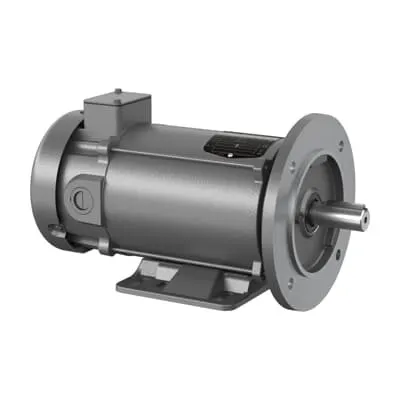

ABB VP3468D DC PM IEC Flange - CE/CSA/UR/WEEE
Part Number: 7BVP3468D
Quick Summary
DC PM IEC Flange motor delivers reliable 1.5 HP drive for conveyors and pumps. The ABB VP3468D is designed to minimize downtime and ensure precise speed control in tight spaces, with 0 day lead time and stock at multiple warehouses. It carries critical certifications for global deployment, including CE, CSA, UR, and WEEE, ensuring compliance across regions. With a TEFC enclosure, frame size D90D, and 180 V DC operation at 3000 r/min, this motor integrates seamlessly into standard drive systems. The combination of robust hardware and global support translates into faster project timelines and predictable ROI.
Product Information
Extended Description
7BVP3468D ABB: DC PM IEC Flange 1.5 Hp (VP3468D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.1/1.5HP,3000RPM,DC,D90D,3432P,TEF
Ambient Temperature
40 °C
Armature Current
7.7 A
Armature Inertia
12.49 ft·lbf
Armature Voltage
180 V
Base Speed
3000 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3468D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
34LY6484: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
90
Global Commercial Alias
VP3468D
Gross Volume
2200.078 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
1.500 Hp
Insulation Class
F
Invoice Description
1.1/1.5HP,3000RPM,DC,D90D,3432P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, 1.1/1.5 HP, Frame Size D90D, 0 Phase, TEFC Enclosure, (VP3468D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D90D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1.5 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
46 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
3000 r/min
Replaced Product ID (OLD)
7B34-6484Z178
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.95 in
Short Description
1.1/1.5 HP, Frame Size D90D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The DC PM IEC Flange design delivers high efficiency and precise torque control, reducing energy consumption and improving process stability in continuous conveyor and pump applications. This enables lower operating costs and improved uptime across manufacturing lines, warehousing, and material handling. Application: ideal for compact, IEC-flange installations where space is limited and precise speed control is required, such as packaging lines and automated sorting systems. Feature → Business Impact → Application: TEFC enclosure provides a robust barrier against dust and moisture, extending motor life in harsh plant environments and reducing maintenance cycles. Application: suitable for OEM machines in food processing, plastics, and textiles. Feature → Business Impact → Application: Frame size D90D and foot-mounted, horizontal mounting simplify installation and alignment, cutting commissioning time and enabling easier service in retrofit projects. Feature → Business Impact → Application: Stocked At Warehouses and 0 day Lead Time improves procurement certainty, shortening project schedules and reducing production downtime. Feature → Business Impact → Application: Certifications CE, CSA, UR, WEEE ensure global compliance, risk mitigation, and smoother cross-border deployments in multi-site operations. Feature → Business Impact → Application: 180 V armature voltage and 3000 r/min base speed deliver reliable performance for high-speed drive tasks in machine tools and processing lines.
Get a Quick Quote for a ABB 7BVP3468D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3468D?
Enquire Now
FAQs
Yes. The VP3468D is a DC PM IEC Flange motor rated for 180 V operation with IEC flange mounting and a D90D frame, making it a straightforward fit for typical industrial drives, conveyors, and machine tools that require reliable, compact mounting and fast integration.
The motor delivers 1.5 HP output with a base speed of 3000 r/min and a rated speed of 3000 r/min. It uses a 1.0 service factor and 7.7 A armature current at 180 V, providing consistent torque for high-speed, continuous-duty applications.
Industries such as packaging, material handling, conveyors, pumps, and machine tools benefit due to the motor's TEFC enclosure, durable steel frame, and compact D90D footprint. Its DC PM design supports precise speed control and smooth startup in demanding production lines.
The VP3468D carries CE, CSA, UR, and WEEE certifications, ensuring regulatory compliance for global deployment and safe operation across international sites and OEM integrations.
With stock in multiple warehouses (US and international), 0 day lead times, and reliable Baldor/ABB support, procurement is faster and downtime is minimized. This translates into shorter project schedules and predictable ROI for mid- to high-volume drive applications.
