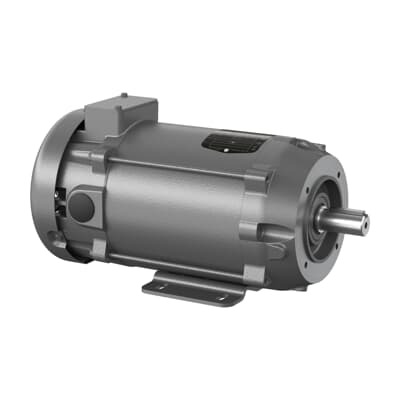

ABB VP3575-14 DC PM IEC Flange - CE CSA UR WEEE
Part Number: 7BVP3575-14
Quick Summary
ABB VP3575-14 DC PM IEC Flange motor delivers dependable 1.5 HP performance for IEC flange-driven applications such as conveyors, machine tools, and packaging lines. This unit is built to endure demanding industrial environments, featuring a TEFC enclosure, frame size D90C, and a rated speed of 1750 r/min. A common challenge in DC motor installations is achieving consistent torque under varying loads while minimizing maintenance; this model meets that need with a robust 180 V armature, 7.7 A current, and sealed bearings designed for long life. With CE, CSA, UR, and WEEE certifications, it suits global markets, and its global warehouse availability enables fast sourcing, reducing downtime and simplifying integration with DC drives and speed controls.
Product Information
Extended Description
7BVP3575-14 ABB: DC PM IEC Flange 1.5 Hp (VP3575-14)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.1/1.5HP,1750RPM,DC,D90C,3536P,TEF
Ambient Temperature
40 °C
Armature Current
7.7 A
Armature Inertia
30.34 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3575-14
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
35LYP454: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
90
Global Commercial Alias
VP3575-14
Gross Volume
3590.443 in³
Gross Weight
84 lb
Horsepower Rating UL/CSA
1.500 Hp
Insulation Class
F
Invoice Description
1.1/1.5HP,1750RPM,DC,D90C,3536P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, 1.1/1.5 HP, Frame Size D90C, 0 Phase, TEFC Enclosure, (VP3575-14)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D90C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1.5 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
84 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35P454Z164
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.95 in
Short Description
1.1/1.5 HP, Frame Size D90C, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Global supply and standard configuration reduce procurement risk and shorten lead times; the VP3575-14 is stocked across multiple warehouses with no Made To Order requirement, enabling rapid replacements in production lines. This translates to lower downtime and smoother plant operation in environments that demand quick sourcing for DC motors. The TEFC enclosure and foot-mounted design provide robust protection in dusty or humid facilities, simplifying installation and alignment while extending motor life for conveyors and packaging lines. With a 1.5 HP rating, 1750 r/min speed, 180 V armature, and 7.7 A current, the motor delivers predictable torque and fast drive response when paired with common DC drives and speed controls. Dimensions—frame D90C, shaft 0.95 in, weight 84 lb—fit standard mounts and facilitate retrofits without custom hardware. Insulation class F and ambient temperature rating of 40 °C support reliable operation in demanding manufacturing environments, reducing thermal stress and maintenance costs. Global compliance (CE, CSA, UR, WEEE) ensures cross-border acceptance, while the US origin simplifies supplier qualification and traceability. The product is stocked at US, German, Chinese, and US-based warehouses, enabling regional fulfillment and streamlined logistics for project kits and spare parts.
