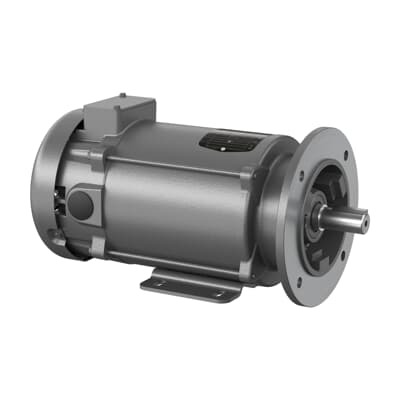

ABB 7BVP3575D DC PM IEC Flange - CE/CSA/UR/WEEE
Part Number: 7BVP3575D
Quick Summary
ABB VP3575D DC PM IEC Flange motor is a compact 1.5 HP drive designed for inline conveyors and machine tools. This motor combines DC PM efficiency with IEC flange mounting for reliable, space-saving integration in tight panel layouts. Customers often struggle with limited stock, long lead times, and compatibility gaps across supplier ecosystems; this model addresses those concerns with 0 day lead time and stock at multiple warehouses. Certifications CE, CSA, UR, and RoHS compliance provide assurance for strict safety and environmental standards. By pairing robust frame D90D construction with TEFC enclosure, it delivers predictable performance and lower total cost of ownership for OEMs and integrators.
Product Information
Extended Description
7BVP3575D ABB: DC PM IEC Flange 1.5 Hp (VP3575D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.1/1.5HP,1750RPM,DC,D90D,3536P,TEF
Ambient Temperature
40 °C
Armature Current
7.7 A
Armature Inertia
30.34 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3575D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
35LYP466: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
90
Global Commercial Alias
VP3575D
Gross Volume
3590.443 in³
Gross Weight
67 lb
Horsepower Rating UL/CSA
1.500 Hp
Insulation Class
F
Invoice Description
1.1/1.5HP,1750RPM,DC,D90D,3536P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, 1.1/1.5 HP, Frame Size D90D, 0 Phase, TEFC Enclosure, (VP3575D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D90D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1.5 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
67 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35P466Z164
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.95 in
Short Description
1.1/1.5 HP, Frame Size D90D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Singapore, Singapore | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: 1) 1.5 HP output at 1750 r/min with 180 V armature voltage reduces drive size and wiring costs, enabling compact panel designs for packaging lines and small conveyors. 2) TEFC enclosure and steel frame size D90D provide rugged operation in harsh industrial environments, boosting uptime and reducing maintenance cycles in material handling and machining. 3) RoHS compliance and CE/CSA/UR/WEEE certifications simplify regulatory approvals for global installations and OEMs looking to meet environmental and safety standards. 4) Sealed bearings (6206) and insulation class F improve reliability in temperature up to 40 °C, supporting long service life in continuous duty drives. 5) Foot-mounted, horizontal mounting with standard flange configuration eases installation, alignment, and retrofit projects with minimal downtime.
Get a Quick Quote for a ABB 7BVP3575D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3575D?
Enquire Now
FAQs
Yes. The VP3575D uses a standard DC PM IEC flange design with a D90D frame and foot-mounted configuration. This simplifies retrofit projects and ensures compatibility with common couplings and belts used in conveyors and machine tools.
The VP3575D carries CE, CSA, UR and WEEE certifications and RoHS compliance, helping you pass safety reviews and environmental requirements for industrial control panels, automation equipment, and globally deployed systems.
Key specs include 1.5 HP (1.1/1.5 HP designation), 1750 r/min rated speed, 180 V armature voltage, 7.7 A armature current, frame size D90D, TEFC enclosure, and sealed 6206 bearings. Shaft diameter 0.95 in; insulation class F; ambient temperature rating 40 °C; weight 67 lb. Mounting is foot-mounted with horizontal orientation.
Lead time is listed as 0 days, and the product is stocked at multiple warehouses globally, including locations in the United States, Singapore, and China, enabling rapid fulfillment for urgent automation builds and OEM schedules.
Warranty terms indicate that products under warranty must be returned. For the VP3575D, confirm the specific warranty window with the supplier and follow the documented return process to ensure proper handling, inspection, and credit or replacement as applicable.
