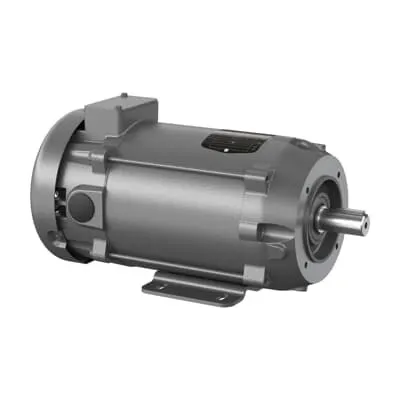

ABB VP3585-14 DC PM IEC Flange - TEFC 2HP CE CSA UR WEEE
Part Number: 7BVP3585-14
Quick Summary
ABB VP3585-14 DC PM IEC Flange is a compact, high-efficiency motor designed for continuous-duty drives in industrial conveyors and material-handling systems. This DC PM motor delivers reliable performance with a robust TEFC enclosure and a frame size D90C footprint that fits standard IEC flange configurations. Engineers often battle downtime, inconsistent lead times, and mounting compatibility when upgrading drives; this model addresses those challenges with immediate stock availability and globally recognized safety certifications. With CE, CSA, UR, and WEEE compliance, the VP3585-14 meets rigorous industry requirements while providing predictable, long-life operation. The design supports straightforward installation and easy maintenance, delivering measurable business value through reduced downtime and streamlined procurement for target applications.
Product Information
Extended Description
7BVP3585-14 ABB: DC PM IEC Flange 2 Hp (VP3585-14)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5/2HP,1750RPM,DC,D90C,3548P,TEFC,
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
9.6 A
Armature Inertia
40.46 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3585-14
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
35LYP454: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
90
Global Commercial Alias
VP3585-14
Gross Volume
3590.443 inÂł
Gross Weight
80 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
1.5/2HP,1750RPM,DC,D90C,3548P,TEFC,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM IEC Flange, 1.5/2 HP, Frame Size D90C, 0 Phase, TEFC Enclosure, (VP3585-14)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D90C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
2 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
80 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35P454Z170
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.95 in
Short Description
1.5/2 HP, Frame Size D90C, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The VP3585-14 uses a DC PM design that delivers high efficiency and steady torque, reducing energy consumption in continuous-duty operations and lowering total cost of ownership in conveyors and material-handling systems. Application: Ideal for automated material handling and packaging lines where uptime matters and power efficiency is a priority. Feature → Business Impact → Application: TEFC enclosure provides severe-duty protection against dust, moisture, and contaminants, improving reliability in harsh factory environments and extending motor life in spinning drives and feeder applications. Application: Suitable for rugged manufacturing floors, washdown zones, and outdoor installations where enclosure integrity matters. Feature → Business Impact → Application: Frame size D90C and IEC flange mounting enable quick, drop-in replacements with minimal alignment work, cutting installation time and reducing commissioning risk. Application: Works well in retrofit projects and new line setups that require standard mounting footprints and fast deployment. Feature → Business Impact → Application: 180 V armature voltage and 9.6 A armature current offer stable startup torque and smooth operation, limiting electrical stress on drives and reducing mechanical wear. Application: Supports conveyors, pumps, and fans that demand reliable starting performance. Feature → Business Impact → Application: Stocked across multiple warehouses (US, GB, SG, etc.) with 0-day lead time, enabling rapid procurement and reduced downtime for maintenance teams. Application: Critical for just-in-time manufacturing, urgent replacements, and global service deployments. The combination of CE/CSA/UR/WEEE certifications and a 2 HP rating makes this motor a pragmatic choice for industries seeking compliant, long-life DC motors with predictable performance and easy integration.
