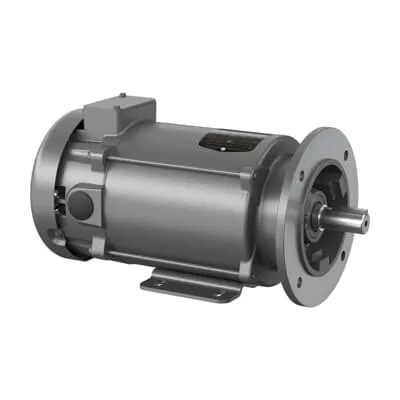

ABB 7BVP3585D DC PM IEC Flange - 2HP TEFC, 1750 RPM
Part Number: 7BVP3585D
Quick Summary
ABB 7BVP3585D is a DC PM IEC Flange motor engineered for reliable, continuous operation in industrial drives such as conveyors, mixers, and automation lines. This compact 2 HP unit delivers steady torque at 1750 rpm while optimizing space in tight enclosures. The design addresses common maintenance and lifecycle challenges with a robust TEFC enclosure and standard frame size D90D. It carries critical certifications including CE, CSA, UR, and RoHS compliance, supporting global installation and regulatory compliance. With US-origin manufacturing and multiple stocking locations, procurement is quicker and lead times are minimized. The combination of performance, regulatory readiness, and worldwide availability translates to lower downtime and improved total cost of ownership for industrial customers.
Product Information
Extended Description
7BVP3585D ABB: DC PM IEC Flange 2 Hp (VP3585D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5/2HP,1750RPM,DC,D90D,3548P,TEFC,
Ambient Temperature
40 °C
Armature Current
9.6 A
Armature Inertia
40.46 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3585D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
35LYP466: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
90
Global Commercial Alias
VP3585D
Gross Volume
3590.443 in³
Gross Weight
75 lb
Horsepower Rating UL/CSA
2.000 Hp
Insulation Class
F
Invoice Description
1.5/2HP,1750RPM,DC,D90D,3548P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, 1.5/2 HP, Frame Size D90D, 0 Phase, TEFC Enclosure, (VP3585D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D90D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
2 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
75 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35P466Z170
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.95 in
Short Description
1.5/2 HP, Frame Size D90D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | Singapore, Singapore | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The DC PM IEC Flange design with a TEFC enclosure provides rugged protection against dust and moisture, enabling reliable operation in harsh factory environments. This translates to lower maintenance cycles and higher on-line uptime for packaging lines and conveyors. The 2 HP rating with a base speed of 1750 r/min offers predictable torque and smooth speed control, reducing cycle times and improving process consistency across machine tools and automated assembly cells. Frame size D90D and foot-mounted horizontal mounting simplify installation in existing equipment footprints, allowing rapid retrofits and standardized spare parts stocking. Certifications such as CE, CSA, UR, and RoHS ensure global compliance and ease of integration in multinational facilities, minimizing project risk. Stock availability across multiple warehouses and a 0-day lead time support rapid deployment, decreasing downtime during line changes and service windows. The RoHS-compliant, continuous-duty design aligns with green manufacturing goals while lowering long-term maintenance costs through durable materials and simpler electrical interfaces. Together, these features enable OEMs and integrators to deliver reliable, compliant, and fast-deployable motor solutions for industrial drives, conveyors, and automation equipment.
Get a Quick Quote for a ABB 7BVP3585D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVP3585D?
Enquire Now
FAQs
The motor is foot-mounted with a horizontal orientation and frame size D90D. Net dimensions include 22.875 in depth, 12.813 in height, and 12.25 in width, making it suitable for compact installations and easy integration into existing equipment footprints.
Yes. The 7BVP3585D is a DC PM motor specified for 0 phases in the data set, designed for DC drive integration. It delivers 2 HP at 1750 rpm with a 180 V armature and standard TEFC protection for reliable operation.
The motor carries CE, CSA, UR, and WEEE certifications and is RoHS compliant, ensuring regulatory compatibility across Europe, North America, and other regions.
The unit is stocked at multiple warehouses (US and international locations) with a 0-day lead time in many regions, enabling rapid procurement and deployment for OEMs and integrators.
The TEFC enclosure and durable frame (D90D) support longer service intervals and reduced maintenance. Global stocking reduces downtime during swaps, improving asset availability and lowering total cost of ownership for drive systems, conveyors, and automated tooling.
