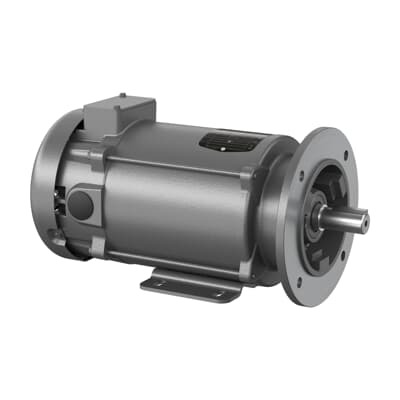

ABB VP3588D DC PM IEC Flange - 2HP TEFC CE/CSA/UR
Part Number: 7BVP3588D
Quick Summary
ABB VP3588D is a DC PM IEC Flange motor designed for compact drives with 2 HP of continuous-duty power in conveyors, packaging lines, and machine tools. It targets space-constrained installations where reliability and efficiency drive total cost of ownership. This motor carries CE, CSA, UR, and WEEE certifications, with RoHS compliance and an insulation class F rating to meet demanding industrial environments. Originating in the United States, it is stocked across multiple warehouses, enabling zero-day lead times and rapid delivery for OEMs. For system integrators, the VP3588D delivers a robust, easily integrated solution that aligns with existing DC supply architectures and drives measurable improvements in uptime and performance.
Product Information
Extended Description
7BVP3588D ABB: DC PM IEC Flange 2 Hp (VP3588D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5/2HP,3000RPM,DC,D90D,3536P,TEFC,
Ambient Temperature
40 °C
Armature Current
10 A
Armature Inertia
30.34 ft·lbf
Armature Voltage
180 V
Base Speed
3000 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3588D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
35LYP466: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
90
Global Commercial Alias
VP3588D
Gross Volume
3590.443 inÂł
Gross Weight
67 lb
Horsepower Rating UL/CSA
2.000 Hp
Insulation Class
F
Invoice Description
1.5/2HP,3000RPM,DC,D90D,3536P,TEFC,F2
Made To Order
No
Medium Description
DC PM IEC Flange, 1.5/2 HP, Frame Size D90D, 0 Phase, TEFC Enclosure, (VP3588D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D90D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
2 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
67 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
3000 r/min
Replaced Product ID (OLD)
7B35P466Z295
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.95 in
Short Description
1.5/2 HP, Frame Size D90D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: High-efficiency 2 HP DC PM motor with a 3000 r/min nominal speed. Business Impact: Reduces energy consumption in continuous-duty drives and delivers consistent torque. Application: Ideal for conveyors, packaging lines, and machine tools in modern automation cells. Feature: Frame Size D90D with TEFC enclosure and foot-mounted base. Business Impact: Supports a compact footprint and straightforward installation, lowering mounting complexity and maintenance. Application: OEM assemblies where space is at a premium and serviceability matters. Feature: RoHS compliant and certified (CE, CSA, UR, WEEE). Business Impact: Enables global market access and regulatory compliance, reducing product delisting risk. Application: International OEMs shipping to EU/NA markets. Feature: Operating conditions and insulation. Business Impact: 40 °C ambient tolerance with insulation class F improves reliability in harsh environments. Application: Industrial automation in manufacturing plants where heat and dust are factors. Feature: Stock availability and fast lead times. Business Impact: 0 day lead time and broad warehouse stocking shorten time-to-market and minimize inventory risk. Application: Just-in-time manufacturing and high-mix low-volume production lines. Feature: Robust mechanicals and warranty terms. Business Impact: Sealed bearings (6206) and standard mounting practices reduce preventive maintenance and warranty concerns. Application: Continuous operation in demanding OEM gear drives and material handling systems.
