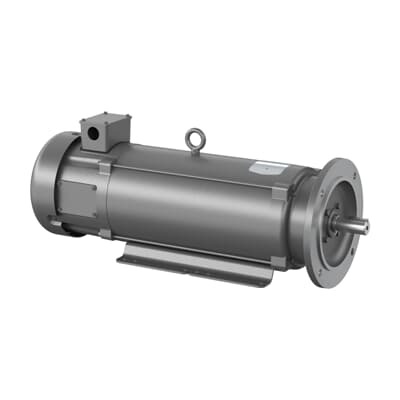

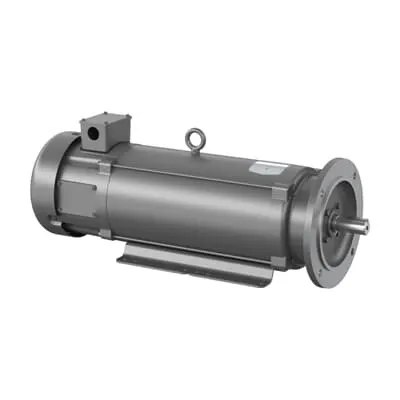

ABB VP3605D DC PM IEC Flange - CE/CSA/UR TEFC
Part Number: 7BVP3605D
Quick Summary
ABB VP3605D is a DC PM IEC Flange motor delivering 5 HP for continuous duty in conveyors and processing lines. Users often struggle with downtime from underspecified motors; this unit’s 180 V armature, 1750 rpm rating, and rugged TEFC enclosure help minimize unexpected stops and maintenance costs. It carries CE, CSA, and UR certifications and is produced in the United States, supporting global deployment across IEC-compliant environments. With a compact footprint, 40 °C ambient tolerance, and regreasable lubrication, this motor combines reliability with practical installation and lifecycle value for manufacturing and packaging applications.
Product Information
Extended Description
7BVP3605D ABB: DC PM IEC Flange 5 Hp (VP3605D)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3.7KW,1750RPM,DC,D112D,3681P,TEFC,F
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
24.5 A
Armature Inertia
177.06 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VP3605D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
36LYP184: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
112
Global Commercial Alias
VP3605D
Gross Volume
13438.538 in³
Gross Weight
65 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
3.7KW,1750RPM,DC,D112D,3681P,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM IEC Flange, 3.7KW, Frame Size D112D, 0 Phase, TEFC Enclosure, (VP3605D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D112D
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
5 Hp
Product Name
DC PM IEC Flange
Product Net Depth / Length
40.938 in
Product Net Height
18.625 in
Product Net Weight
65 lb
Product Net Width
17.625 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B36P184Z509
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.1 in
Short Description
3.7KW, Frame Size D112D, 0 PH, TEFC,
Standards
IEC
Stocked At (Warehouses)
Menden, Germany | Singapore, Singapore | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → TEFC enclosure and frame size D112D → Business Impact → Application: The TEFC (Totally Enclosed Fan C cooled) enclosure protects windings from dust and moisture, reducing insulation degradation and unplanned downtime, which translates to higher line reliability in harsh factory settings. This is ideal for conveyors and processing lines where environmental exposure is common. The compact D112D frame supports easy retrofits and maintains a small footprint in crowded plant rooms. Feature → 3.7 kW / 5 HP, 1750 r/min, 180 V DC → Business Impact → Application: Delivers consistent torque and speed control for continuous duty drives, enabling precise material handling and process throughput in packaging and automation lines. Feature → Foot Mounted, Horizontal mounting → Business Impact → Application: Simplified installation, faster commissioning, and straightforward maintenance, especially in retrofit projects where space and alignment are critical. Feature → Regreasable lubrication → Business Impact → Application: Extends bearing life and reduces maintenance cycles in remote facilities, lowering total cost of ownership for food and beverage, chemical, or automotive components lines. Feature → Insulation Class F → Business Impact → Application: Enables operation in higher ambient temperatures up to 40 °C, improving uptime in warm manufacturing environments. Feature → Stocked At Multiple Warehouses → Business Impact → Application: Accelerates procurement, minimizes downtime during peak demand, and supports global rollouts for distributors and OEMs.
