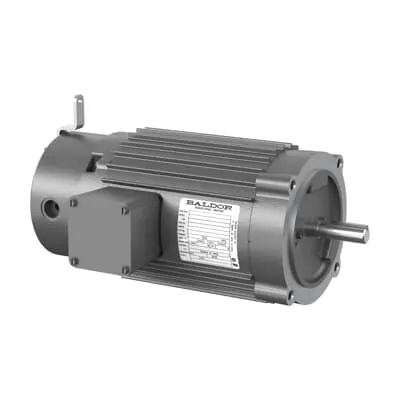

ABB VRBM3542 High Cycle Brake - 208-230/460V 60Hz - CSA UR
Part Number: 7BVRBM3542
Quick Summary
ABB VRBM3542 High Cycle Brake accelerates safe, precise stopping for heavy-duty conveyors and machines in demanding industrial environments. OEMs struggle with brake wear, inconsistent hold, and downtime; this brake module delivers reliable stopping with high cycle life. It carries RoHS compliance and CSA/UR listings, supporting safety and regulatory requirements across global installations. Designed for 3-phase systems with a 56C frame and C-face mounting, it integrates with standard ABB Baldor-Relielance components to simplify installation, spare parts planning, and diagnostics, delivering predictable maintenance costs and improved uptime for production lines. With a 0.75 HP rating at 208-230/460 V and 60 Hz input, this brake is ready for common mid-range motor drives in packaging, material handling, and process automation.
Product Information
Extended Description
7BVRBM3542 ABB: High Cycle Brake 0.75 Hp 208 V (VRBM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,3PH,60HZ,56C,BRAKE,34
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
VRBM3542
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYK208
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Aluminum
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VRBM3542
Gross Volume
2200.078 in³
Gross Weight
47 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,1725RPM,3PH,60HZ,56C,BRAKE,3428M
Made To Order
No
Medium Description
High Cycle Brake, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (VRBM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
71 %
Product Name
High Cycle Brake
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
47 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.9 A | 2.6 A | 1.3 A
Rated Efficiency
75 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature: High Cycle Brake design provides reliable stopping even with frequent cycling. Business Impact: Extends component life and reduces maintenance costs, boosting overall equipment effectiveness. Application: Ideal for conveyors, packaging lines, and material-handling systems requiring rapid, repeated braking. Feature: 56C frame with C-face mounting offers universal compatibility. Business Impact: Accelerates retrofit and simplifies installation, lowering project risk and stocking requirements. Application: Fits existing ABB Baldor-Reliance motor assemblies and new machinery alike. Feature: 3-phase, 208-230/460 V, 60 Hz operation covers broad regional power standards. Business Impact: Enables a single part approach across multiple sites, reducing SKU proliferation. Application: Global manufacturing environments with multi-site operations. Feature: Enclosure Type TENV and aluminum frame withstands typical plant environments. Business Impact: Improves durability and service intervals in moderate ambient conditions, lowering total cost of ownership. Application: Indoor OEM machinery and lines with frequent cycling. Feature: RoHS compliant and CSA/UR certified. Business Impact: Supports regulatory compliance and supplier qualification, reducing risk in audits and manufacturing standards. Application: High-precision automation, food/beverage, and packaging lines requiring certified components.
