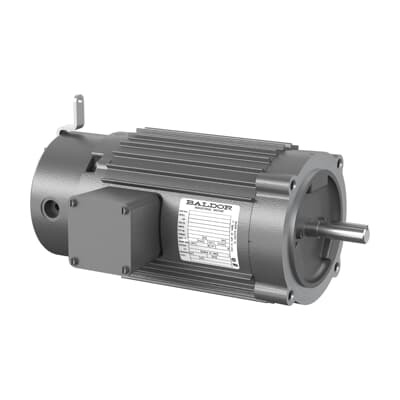

ABB 7BVRBM3546 High Cycle Brake - 1HP 60Hz, TENV Enclosure
Part Number: 7BVRBM3546
Quick Summary
The High Cycle Brake 1 HP ABB VRBM3546 provides precise stopping for heavy-duty motors in packaging and material handling lines. Engineers face wear, heat, and downtime in high-cycle braking; this unit delivers durable performance with robust drive electronics and a compact footprint. It carries CSA and UR certifications, RoHS compliance, and a NEMA Design D-aligned enclosure with a reliable TENV construction for rugged industrial environments. Designed for 60 Hz networks and 230/460 V operation, the solution supports easy maintenance and predictable lifecycle costs for modern manufacturing lines.
Product Information
Extended Description
7BVRBM3546 ABB: High Cycle Brake 1 Hp 230 V (VRBM3546)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1700RPM,3PH,60HZ,56C,3436M,TENV
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
VRBM3546
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYK208
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Aluminum
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VRBM3546
Gross Volume
3496.049 inÂł
Gross Weight
47 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
1HP,1700RPM,3PH,60HZ,56C,3436M,TENV,F1,B
Made To Order
No
Medium Description
High Cycle Brake, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VRBM3546)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
D
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
81 %
Product Name
High Cycle Brake
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
47 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
74 %
Rated Speed
1680 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: High Cycle Brake rated at 1 HP for continuous operation on 60 Hz three-phase power. Business Impact: reduces unplanned downtime and wear on motors, improving line throughput and maintenance planning. Application: ideal for conveyors and packaging lines where frequent stopping and starting are required. Feature: Frame size 56C with 3-phase 230/460 V input and a 56C class motor rating. Business Impact: enables quick retrofits and scalable integration across existing machines without costly rewiring. Application: upgrade paths for legacy equipment in material handling and OEM projects. Feature: Enclosure Type TENV with F insulation and NEMA Design Code D. Business Impact: enhances reliability in ambient temperatures up to 40 °C and under continuous duty, lowering risk of insulation failure. Application: harsh factory floors and temperature-variable environments. Feature: Drive End Flange Type C-Face and horizontal mounting with F1 mounting position. Business Impact: simplifies installation and alignment, reduces setup time on new builds and retrofits. Application: C-face mounted motors on conveyors and processing lines. Feature: Brake Present Yes with rated current 3.2 A / 1.6 A and safe start-on-line operation. Business Impact: tight control over stopping dynamics improves process accuracy and energy management. Application: precise stop/start cycles in automation cells. Feature: Stocked At Multiple Warehouses with 0 day lead time. Business Impact: accelerates procurement cycles, minimizes downtime waiting for parts, and supports just-in-time maintenance. Application: mission-critical line maintenance in US and international sites.
Get a Quick Quote for a ABB 7BVRBM3546
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVRBM3546?
Enquire Now
FAQs
The VRBM3546 uses C-Face drive-end flange mounting with a horizontal orientation and F1 mounting position, aligning with 56C frame motors. This simplifies retrofits and OEM installations, reduces alignment errors, and enables straightforward direct-on-line integration on standard conveyor and packaging gear.
It is a 1 HP, 3-phase brake designed for 60 Hz operation with 230/460 V input. Rated currents are 3.2 A and 1.6 A, supporting reliable braking in continuous duty applications. With a 56C frame and a NEMA D design, it provides predictable stopping performance and durability for high-cycle lines.
Yes. The High Cycle Brake VRBM3546 is engineered for high-cycle braking on conveyors, packaging machinery, and other continuous-duty motor systems. Its 1 HP rating, robust enclosure, and compatible mounting options make it ideal for precise stop/start sequences in demanding industrial environments.
The unit carries CSA and UR certifications, RoHS compliance for restricted substances, and is built with a TENV enclosure suitable for rugged facilities. These certifications support safety, regulatory compliance, and environmentally responsible manufacturing.
Lead time is effectively 0 days with multiple stock locations (US, China), enabling rapid response and reduced downtime. The combination of durable construction, high-cycle capability, and fast availability translates to lower maintenance costs and faster project ROI on high-volume lines.
