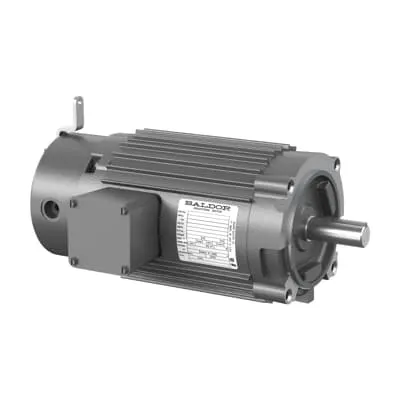

ABB VRBM3546T High Cycle Brake - 60 Hz CSA UR
Part Number: 7BVRBM3546T
Quick Summary
ABB VRBM3546T High Cycle Brake is a 1 HP, 230 V three-phase brake motor for continuous-duty conveyors. These buyers contend with brake wear, downtime, and alignment issues that throttle productivity. CSA and UR certified, designed to NEMA design D standards with a 60 Hz supply and 230 V operation. Its compatibility with 143TC frame, C-Face mounting, and TENV enclosure supports fast installation and long-term maintenance savings. This combination translates to higher line uptime, lower total cost of ownership, and a smoother integration with ABB drive systems. Customers can rely on rapid availability from multiple regional warehouses. 0 day lead time in stocked locations helps shorten project timelines.
Product Information
Extended Description
7BVRBM3546T ABB: High Cycle Brake 1 Hp 230 V (VRBM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1700RPM,3PH,60HZ,143TC,3436M,TE
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
VRBM3546T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYK991
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Aluminum
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
VRBM3546T
Gross Volume
3496.049 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
1HP,1700RPM,3PH,60HZ,143TC,3436M,TENV,F1
Made To Order
No
Medium Description
High Cycle Brake, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VRBM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
D
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
81 %
Product Name
High Cycle Brake
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
46 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
74 %
Rated Speed
1680 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: High Cycle Brake design enables rapid, repeatable stopping with reduced brake wear over many cycles, translating to lower maintenance frequency and less unplanned downtime on high-throughput lines such as conveyors and packaging systems. This directly improves line efficiency and reduces total cost of ownership by minimizing stop-start losses and brake replacement costs. Application: suitable for continuous-duty material handling and automated packaging equipment where frequent braking is required. Feature → Business Impact → Application: 1 HP, 230 V, 3-phase performance provides robust torque at standard industrial supplies, enabling reliable startup and steady braking under load while maintaining energy efficiency and predictable power usage. Application: retrofits and new installs in standard plant electrical architectures. Feature → Business Impact → Application: 143TC frame with C-Face mounting and footless base simplifies retrofits and new builds, reducing installation time and simplifying alignment during motor/brake integration. Application: rapid commissioning on existing Baldor-Reliance drives and compatible drives. Feature → Business Impact → Application: TENV enclosure and F insulation class protect internal components in typical factory environments, extending service intervals and improving reliability. Application: long-term operation in 40 °C ambient conditions. Feature → Business Impact → Application: Voltage flexibility 230/460 V and 60 Hz operation provide compatibility with mixed electrical grids, enabling cross-site deployment. Application: global manufacturing footprints with standardized spares. Feature → Business Impact → Application: CSA/UR certification offers compliance confidence for safety-critical environments, reducing QA risk and simplifying procurement in regulated industries. Application: machine builders targeting stringent safety and reliability requirements.
